Assembling cylindrical tapers

  • February 13, 2017
  • 4 replies
  • 3813 views

I have two parts, one with a male cylindrical taper and the other with a matching female cylindrical taper. How do I assemble these two parts so the tapers are touching surface to surface?

    4 replies

    M
    MartinHanak24-Ruby III
    24-Ruby III
    February 14, 2017

    Hi,

    I think you can create datum point at the tip of conical surfaced and assemble point-to-point.

    MH

      S
      23-Emerald III
      StephenW23-Emerald III
      23-Emerald III
      February 14, 2017

      Use the 'CENTERED' constraint. You have to select the constraint type prior to selections, it will never show up using the automatic selection type.

        S
        sbrown-31-VisitorAuthor
        1-Visitor
        February 14, 2017

        Thank you for the suggestions. I'll have to explore the use of the "centered" constraint. I was able to finally get it to work last night. Similar to what Martin Hanak suggested above I was able to use "coincidence" with a point on the male cone and the surface of the female cone to complete the mate.

        T
        Tmetcalf5-Regular Member
        5-Regular Member
        February 14, 2017

        Good day Stephen and welcome to PTC Community.

        I hope Martin and Stephen's answers were helpful and you problem is solved.

        If so, would you please mark one of their answers as Correct; by doing so, the answer bubbles to the top of the conversation making it easy to find.

        Have an excellent day.

        Best,

        Toby

        D
        dschenken1-Visitor
        1-Visitor
        February 14, 2017

        Mate/coincident should work. It used to.

        S
        23-Emerald III
        StephenW23-Emerald III
        23-Emerald III
        February 14, 2017

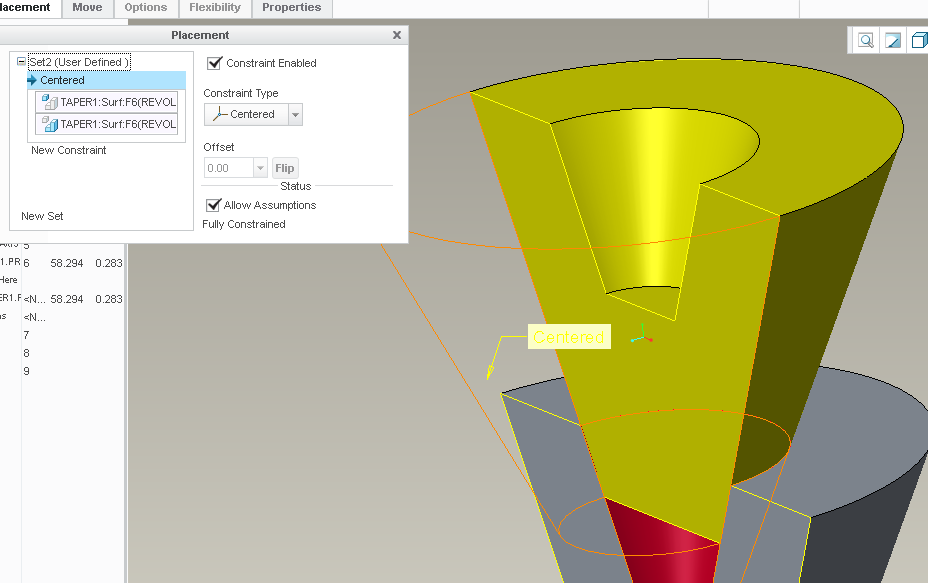

        If you've never tried the centered constraint, consider trying it for situations like this, tapers or sphericals.

        Only one constraint is needed if you don't require rotational control of the part (allow assumptions in the image above).

        It's a "nice to have" item, not that there aren't other ways to do it.
