Assembly Family Table BOM

  • November 12, 2010
  • 1 reply
  • 746 views

Hey there...

Anyone have any good ideas on how to build an automatic BOM with repeat regions foran assembly family table? Essentially we want to show all the assembly family table instances and the different components for each in one table.

If this isn't possible, what other options do I have?

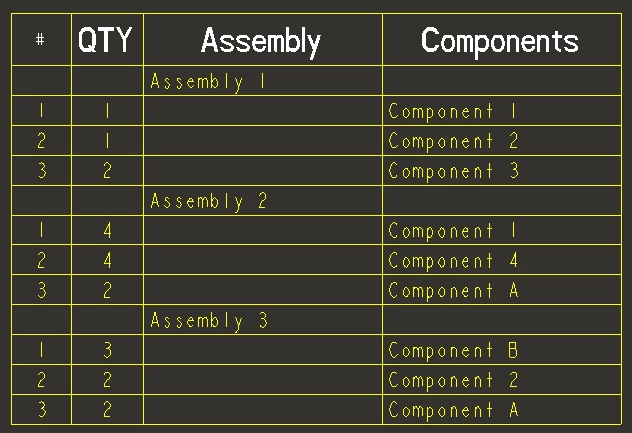

See attached picture for clarification.

-marc


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

P
ptc-1871421-Visitor
1-Visitor
November 15, 2010


you can build a table that will display specified column values for specified instances in a family table, i use this alot...but...pro/e can't build quantity counts from that table (which is very frustrating). also, the table will go left to right instead of top to bottom like your picture displays. so, what i do is have leaders notes to each part that is displayed in the table and in the note i specify the qty if the value is more than '1'. in my first attempts using this i did put columns in for the qty (as i've shown in the attachment) but if you have more than a few parts in the assy this will make the table just to wide to use.
