auxillary view

Hi



Hi friends if anybody know how to rotate auxiliary view in creo means please help me out

9 replies

StephenW
StephenW23-Emerald III
23-Emerald III
Aug 8, 2016 12:59 PM UTC

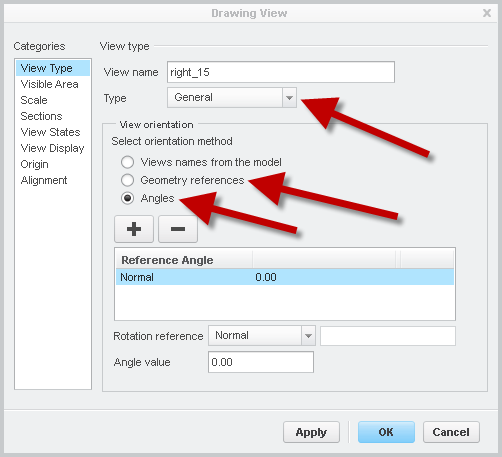

Right click on the view, select properties. Change AUXILLARY in the type drop down to GENERAL, then APPLY. You will get additional options then. Use GEOMETRY REFERENCES or ANGLES to rotate the view as desired.

Translate
    Ajithkumar1-Visitor
    1-Visitor
    Aug 23, 2018 4:17 AM UTC

    Is there any standard angle for auxiliary view? If it's there any standard values please reply.

    Translate
    StephenW
    StephenW23-Emerald III
    23-Emerald III
    Aug 23, 2018 11:55 AM UTC

    An Auxillary view is an orthographic projection that is taken from ANY angle that is required to accurately represent the geometry.

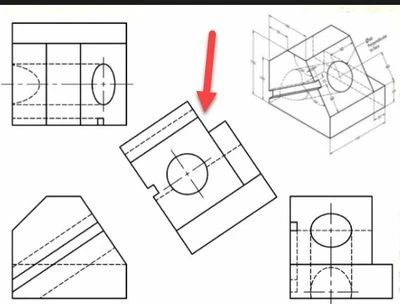

    In the image below, the auxillary view is at the angle of the surface that the hole is one so the hole is shown "true".
