axis display in models

Hello everyone,

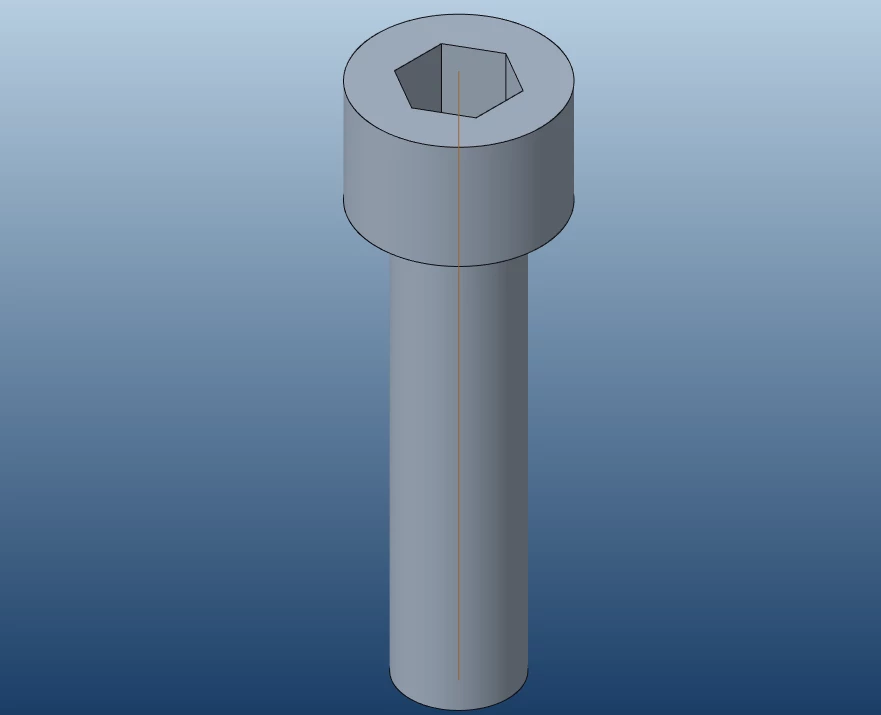

We just upgraded to CREO 11 from CREO 7.   Axis are showing up as solid lines in models in 11 but show as center line 7.  I've been looking for a config setting or something to fix it with no luck.  Gets to be a mess with large parts.  They display better in drawings, you can zoom in and see it's a center line at least.  They show up correctly when printed.



Any suggestions?

Thanks





StephenW
StephenWAnswer
23-Emerald III
Apr 21, 2025 6:53 PM UTC

Remove all the setups and try in out of the box creo, just to trouble shoot if it is something specific to your setup. That's always a good first step.

View in thread

4 replies

aputman13-Aquamarine
13-Aquamarine
Apr 21, 2025 6:41 PM UTC

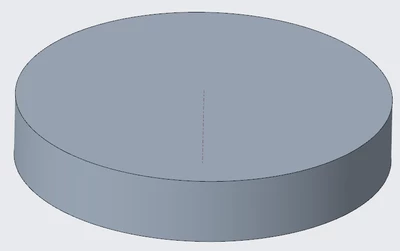

Is this an imported model (STP, IGES or similar)?  I have Creo 11 and axis show as centerline.




Translate
JH_12630913-NewcomerAuthor
3-Newcomer
Apr 21, 2025 6:51 PM UTC

Nope it's CREO parts.  My co-workers CREO 11 displays correctly.  I'm stumped!



Translate
StephenW
StephenW23-Emerald IIIAnswer
23-Emerald III
Apr 21, 2025 6:53 PM UTC

Remove all the setups and try in out of the box creo, just to trouble shoot if it is something specific to your setup. That's always a good first step.

Translate
    aputman13-Aquamarine
    13-Aquamarine
    Apr 21, 2025 7:11 PM UTC

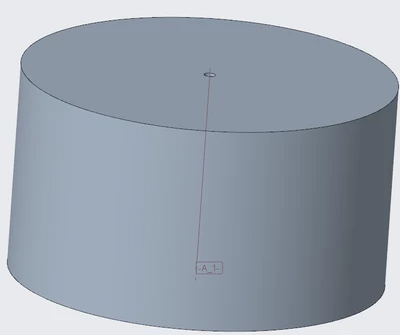

    Is it possible that there are multiple axis in this location that are really close together but not perfectly aligned?  I can achieve what looks like a solid line using two features that are offset by 0.001mm
