Axis selection for dimensioning in MBD

  • December 6, 2024
  • 1 reply
  • 819 views

In MBD, for dimensioning  Axis selection is not possible in TOP view combined state but possible in FRONT combined state

for TOP combine state

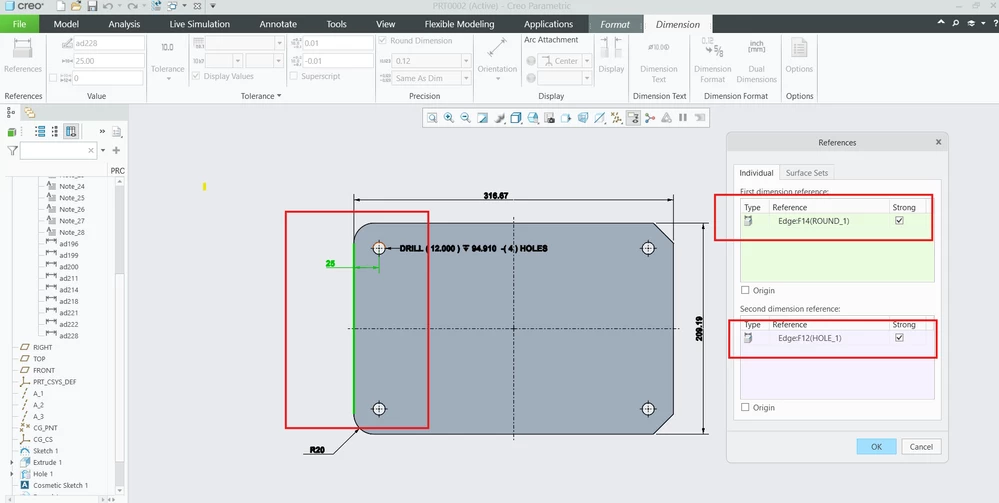

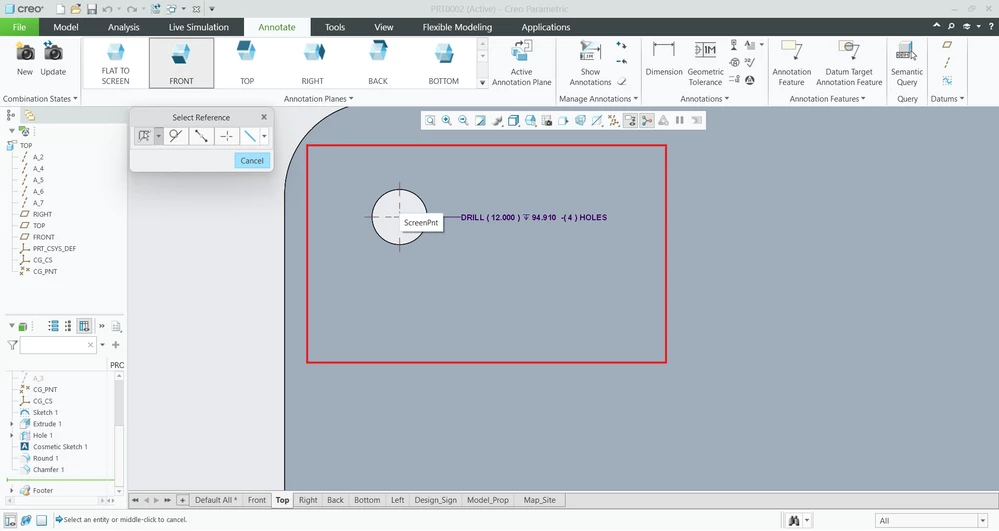

Hole edge Selection (Not able to select axis as reference)

for FRONT combined state

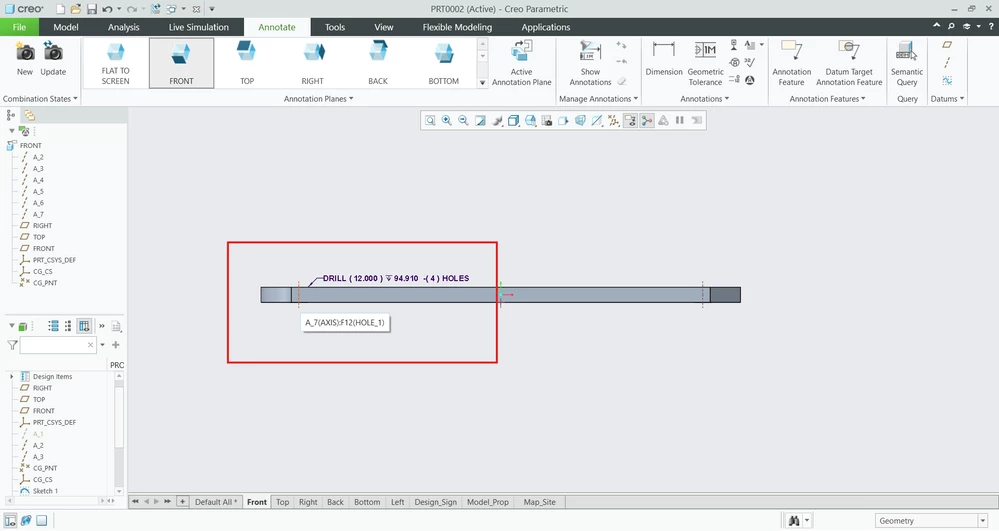

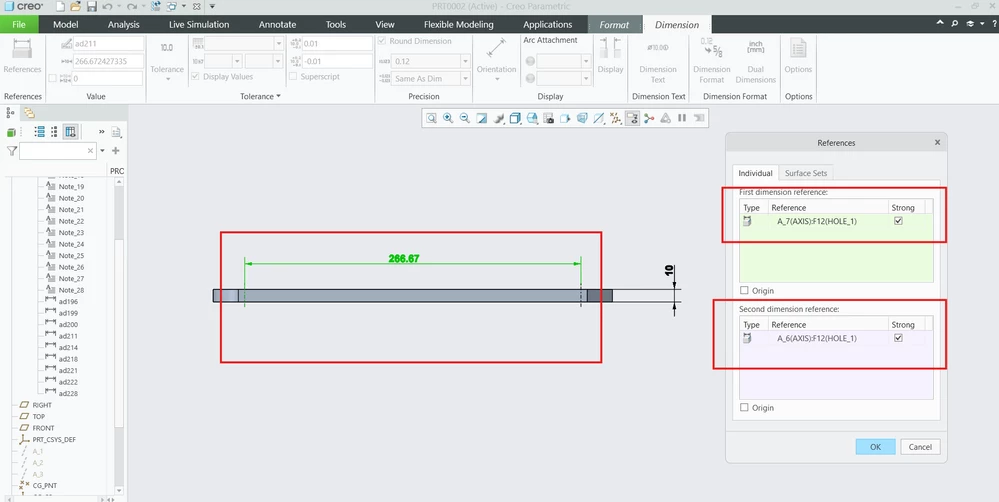

Axis selection ( As reference)



See attached images

reference selection for front.pngreference selection.png


Best answer by RushikeshJ

In MBD, To select Axis as a reference for dimensioning, we need to orient the model for axis selection Slightly

1 reply

V
vnamboodheriCommunity Manager
Community Moderator
December 11, 2024

Hi @RushikeshJ,

Thank you for your question.

Your post has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant.



Regards,

Vivek N
Community Moderation Team.

R
RushikeshJ12-AmethystAuthorAnswer
12-Amethyst
January 8, 2025

In MBD, To select Axis as a reference for dimensioning, we need to orient the model for axis selection Slightly
