Howdy,



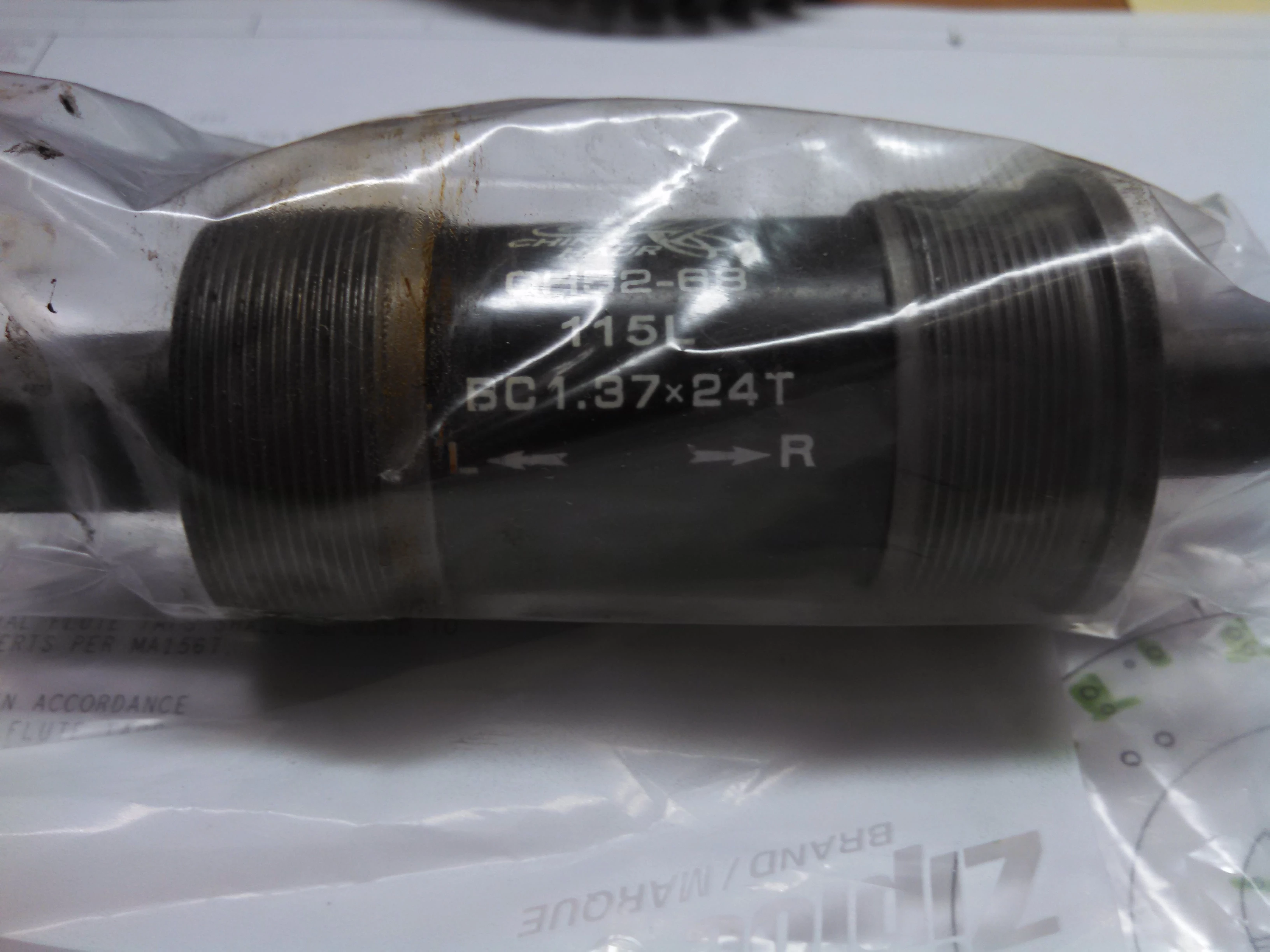

Anyone know how to model these threads (female/hole) in CREO 2.0?



Please and Thanks.




This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    Best answer by TomD.inPDX

    If you want to model the threads, right here:

    Yet another Thread thread - UTS Implementation

    9 replies

    Dale_Rosema
    Dale_Rosema23-Emerald IV
    23-Emerald IV
    November 19, 2014

    Are you looking to actually cut threads into the material?

    A simple way would be to give the hole properties and the thread call outs.

    Welcome to the forum.

    Dale

    TomD.inPDX17-PeridotAnswer
    17-Peridot
    November 19, 2014

    If you want to model the threads, right here:

    Yet another Thread thread - UTS Implementation

      TomD.inPDX17-Peridot
      17-Peridot
      November 19, 2014

      Welcome to the forum, That's a bottom bracket, BTW.

      dschenken1-Visitor
      1-Visitor
      November 19, 2014

      The bottom bracket is part of the frame. Since a huge number of people have misapplied the term to the crank spindle assembly, aka bottom bracket bearing, the term is now damaged and the bottom bracket portion of the frame has to be called the bottom bracket shell for clarity.

      A great reference for all things bicycle - http://www.sheldonbrown.com

      neomechanikos1-Visitor
      1-Visitor
      November 19, 2014

      Looks like the thread is actually a British Standard Cycle Thread (BSC)....slightly different than UTS, UN, etc...but apparently ISO compatible.

      http://mdmetric.com/tech/thddat17.htm

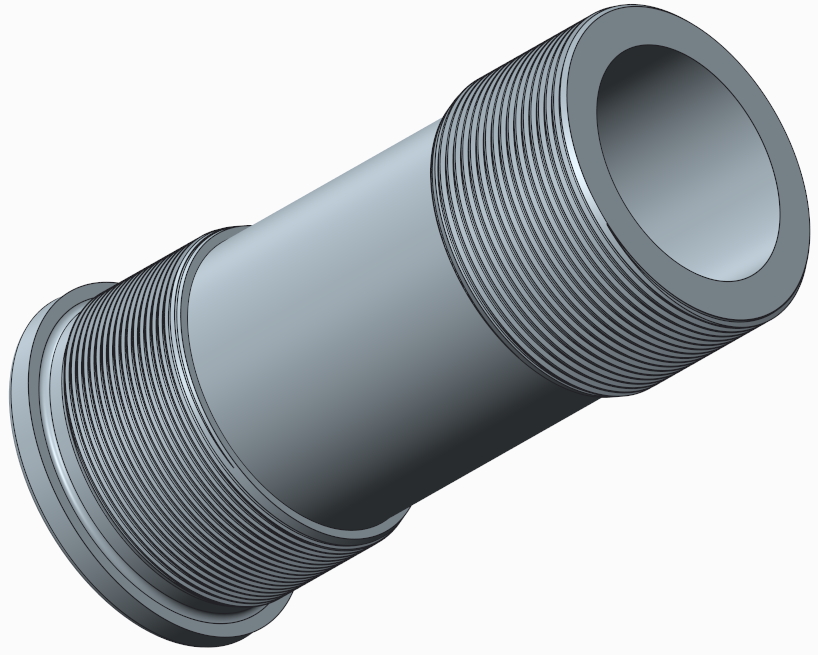

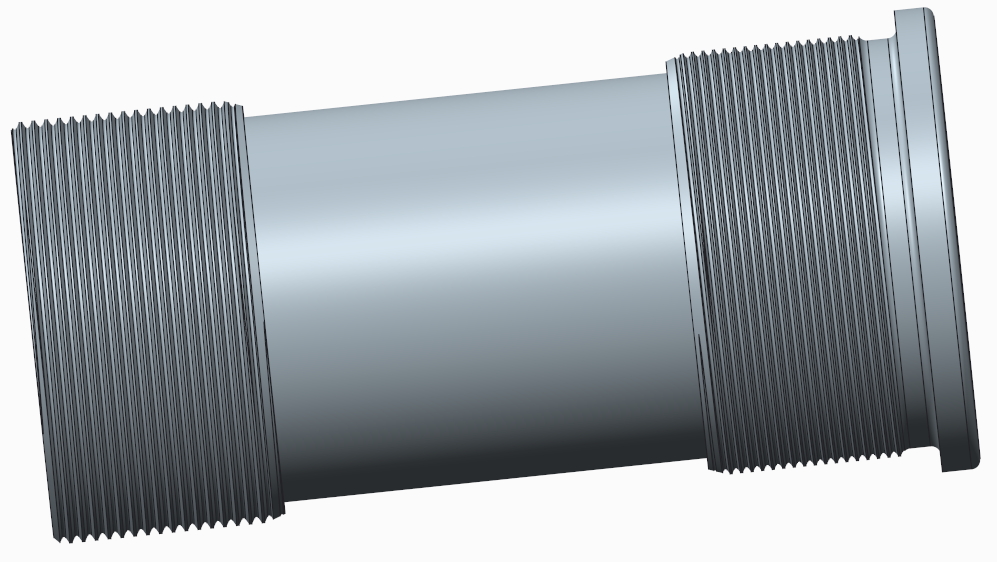

      Anyway, for migrane fun, I modeled the threads using VSS....my favorite since helical sweeps are sooooo ProE v1...and no fun . See attached. Bottom bracket (or whatever it's called) dimensions are a guess, but the thread should be correct.


      TomD.inPDX17-Peridot
      17-Peridot
      November 19, 2014

      Damn eric... now I'm going to have to come up with even more thread sections

      Okay... how ya going to thread that into anything with both left and right and threads

      dschenken1-Visitor
      1-Visitor
      November 19, 2014

      Heat the frame and cool these parts, slide them in and let them return to normal temps. For sure it's not going to loosen. Be sure to use lubed-for-life bearings.

      The OP was looking for the hole/internal thread. I think he needs to buy the taps, find a bike shop that will cut the thread, or just give the assembly to a machinist to single-point the mating part. http://www.parktool.com/blog/repair-help/bottom-bracket-tapping-and-facing-bts-bfs

      In looking for terminology references I came across Campy using hirth couplings. For anyone but Campy I'd ask why, but if it's expensive and precise, Campy is the company to try it. They also made a wine bottle opener.

      While many people concentrate on replacing the efficient chain drive on bicycles as some sort of design improvment, it is amazing to me the variety of ways developed to attach the pedals to cranks and cranks to the chainwheel and frame.
