Bend in sheetmetal

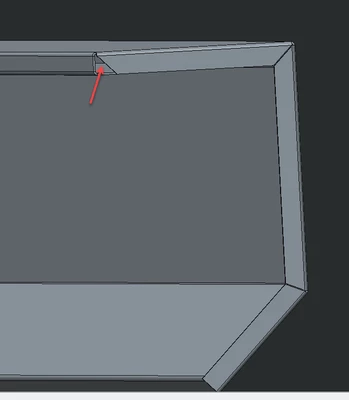

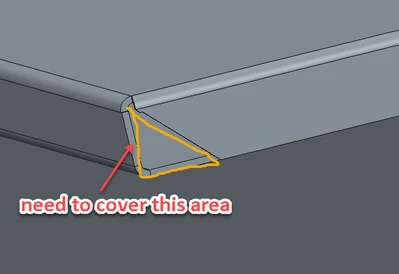

I have created a closed profile with sheet metal, but on the last two bends the corner is not closed and there is a chamfer there as shown in the following figures and attached file, how can I have a complete perpendicular edge there?









kdirth
kdirthAnswer
21-Topaz I
Jun 29, 2023 12:35 PM UTC

Remove the bend from the end of the chain to remove the chamfer.  You will then need to add your desired relief and possibly extend the wall.




There is always more to learn.
View in thread

2 replies

kdirth
kdirth21-Topaz IAnswer
21-Topaz I
Jun 29, 2023 12:35 PM UTC

Remove the bend from the end of the chain to remove the chamfer.  You will then need to add your desired relief and possibly extend the wall.




Translate
There is always more to learn.
MohaSharifi10-MarbleAuthor
10-Marble
Aug 21, 2023 3:39 PM UTC

Thank you for your reply it worked!
