BOM Balloons Not Showing

  • December 1, 2021
  • 4 replies
  • 10449 views
I am using Creo Parametric - Release 4.0 (connected) 4.0 M030

Cannot Get BOM balloons to show up on a couple of drawings but will on others. No errors,no visible issues just balloons do not appear. Have tried clearing the regions and still nothing will show on any view. Can create other drawings and get balloons to work fine just certain drawings/models.

    4 replies

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    December 1, 2021





    1. Possibly the views are of a simplified rep but the BOM table is to another rep or the master rep.

    2.There are more than one models in the drawing and you are trying to show the BOM balloons on the wrong model

    3. Aliens are erasing bits of your brain so you think you don't see BOM balloons on some drawings but see them on others.

    Any chance you can share a problem model/drawing?

      Dale_Rosema
      23-Emerald III
      Dale_Rosema23-Emerald III
      23-Emerald III
      December 1, 2021

      Stephen,

      Not sure if this is already one of your thoughts:



       - multiple page drawing and you have used the balloon number on one of the other views. The same number cannot be used multiple times.

        V
        24-Ruby III
        VladimirN24-Ruby III
        24-Ruby III
        December 1, 2021

        A similar question earlier - "Issues with Showing Item Balloons by View - Creo 4.0": https://community.ptc.com/t5/3D-Part-Assembly-Design/Issues-with-Showing-Item-Balloons-by-View-Creo-4-0/m-p/475151



        Some helpful articles:

        T
        Tyler-M3FAB4-ParticipantAuthor
        4-Participant
        December 1, 2021

        I have cleared the regions and still not had any luck. I had found those cases before opening this one and was not able to make those fixes work on this.

        kdirth
        21-Topaz I
        kdirth21-Topaz I
        21-Topaz I
        December 1, 2021

        Another possibility is the balloons are already there and erased.  Check the drawing tree with the Table tab active for erased/hidden balloons.

        There is always more to learn.
          T
          Tyler-M3FAB4-ParticipantAuthor
          4-Participant
          December 1, 2021

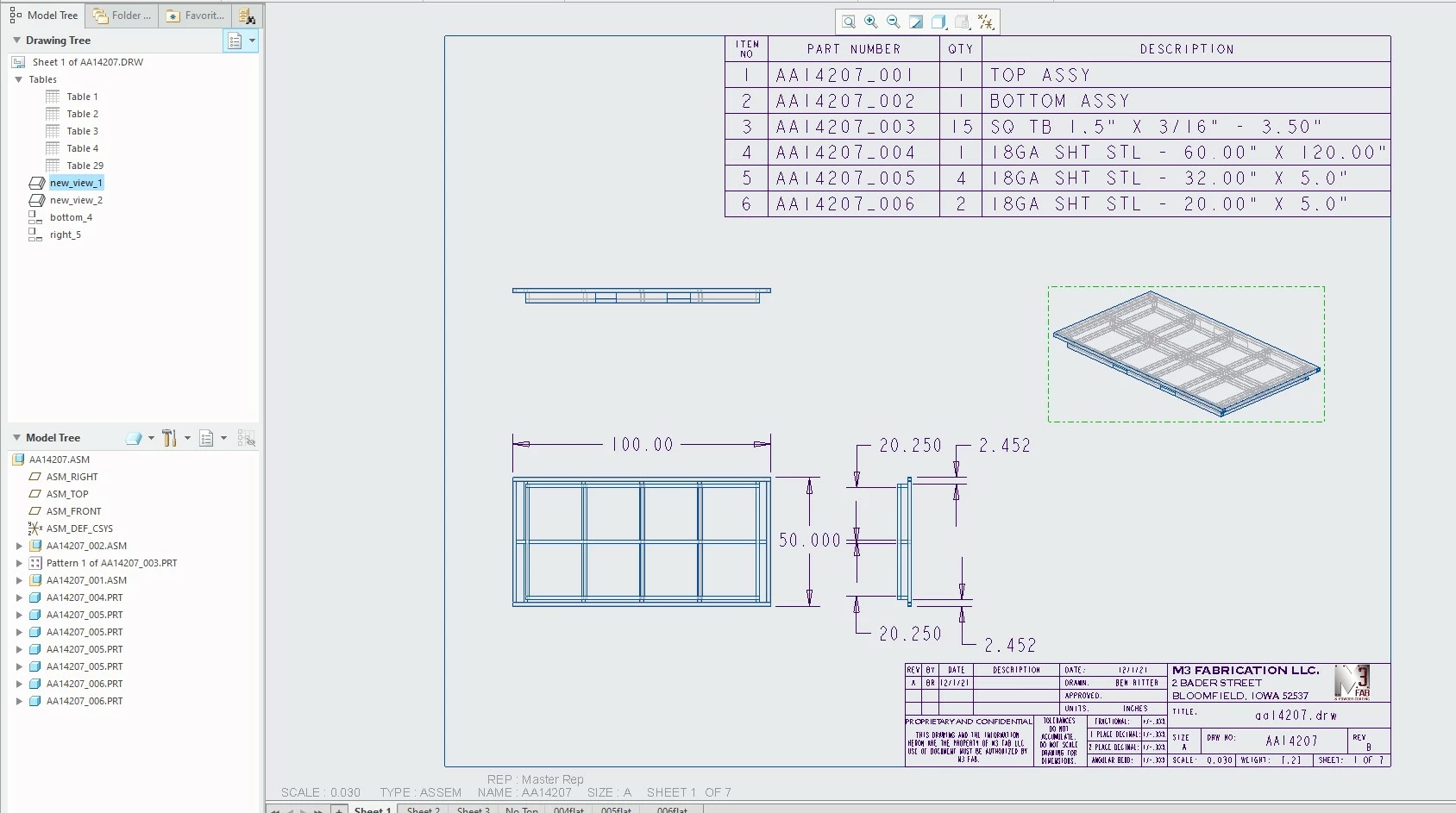

          Good thought. I checked the tree and don't see anything hidden our out of line. See attached snapshot.

          S
          23-Emerald III
          StephenW23-Emerald III
          23-Emerald III
          December 1, 2021

          Change to the annottation tab and expand the views to see hidden balloons, if they are there.

          M
          MartinHanak24-Ruby III
          24-Ruby III
          December 2, 2021
          @Tyler-M3FAB wrote:
          I am using Creo Parametric - Release 4.0 (connected) 4.0 M030

          Cannot Get BOM balloons to show up on a couple of drawings but will on others. No errors,no visible issues just balloons do not appear. Have tried clearing the regions and still nothing will show on any view. Can create other drawings and get balloons to work fine just certain drawings/models.

          Hi,

          tip no 1.

          Sometimes drawing can be corrupted. Create new drawing to verify this idea.

          tip no 2.

          Open case at PTC Support and send them problematic data.
