BOM-show all part & qty of Assembly in table in Creo Drawing

9 replies
5924 views
Translate All

Dear PTC

I have one assemly (more 1000 parts include many sub-assembly)

I want to do a list spare part for all Big-assemly

Ex: Asm 1 have 7kids: 1.1 to 1.7

ASM 2 have 4kids: 2.1 to 2.4

....

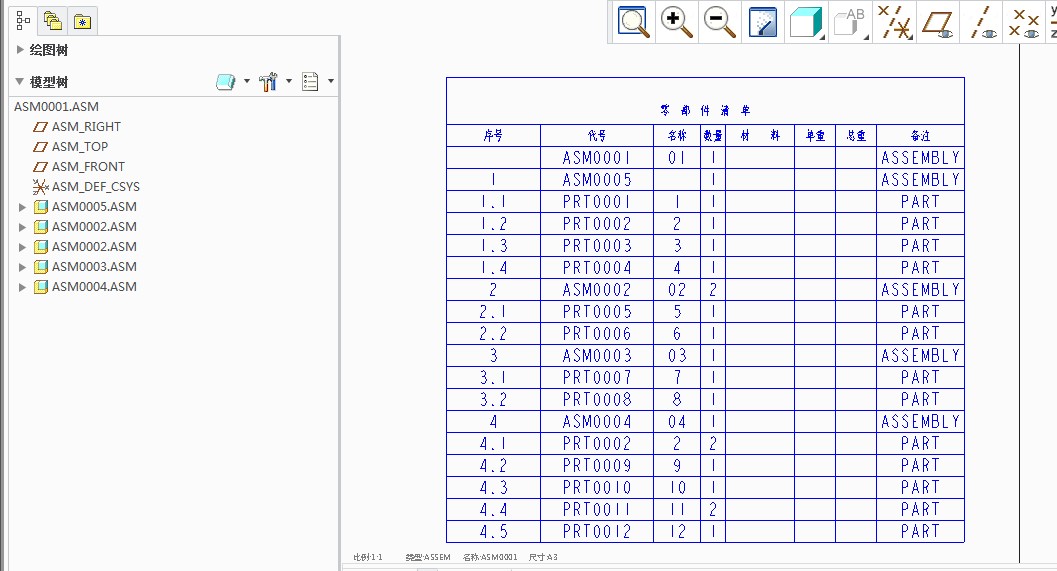

How we do like below list in Drawing of CREO?

Thanks & regards

-

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Assembly Design

B

bduncan

17-Peridot

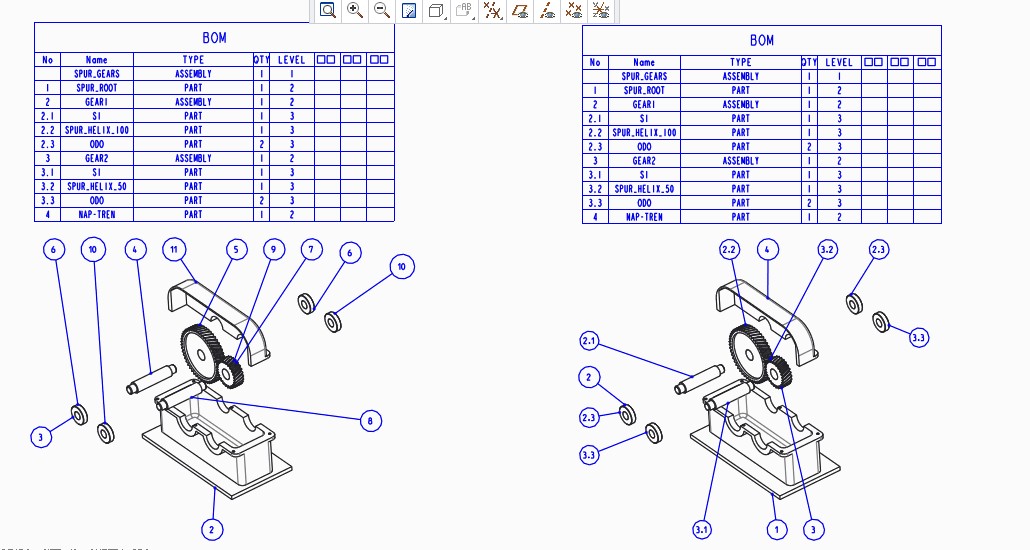

try this

if save_idx==pass_num && rpt_index==1
save_idx=0
endif

if rpt_index>save_idx
save_idx=rpt_index
pass_num=0
else
pass_num=save_idx
endif

if pass_num==0

if rpt_index==1
current_level=rpt_level
save_2sn=0
save_3sn=0
save_4sn=0
save_5sn=0
/*加入点
endif
if current_level==rpt_level
if rpt_level==2
save_2sn=save_2sn+1
endif
if rpt_level==3
save_3sn=save_3sn+1
endif
if rpt_level==4
save_4sn=save_4sn+1
endif
if rpt_level==5
save_5sn=save_5sn+1
endif
/*加入点
else
if rpt_level==2
save_2sn=save_2sn+1
/*save_4sn=save_2sn
endif
if rpt_level==3
save_3sn=save_3sn+1
if current_level<rpt_level
save_3sn=1
endif
/*save_4sn=save_3sn
endif
if rpt_level==4
save_4sn=save_4sn+1
if current_level<rpt_level
save_4sn=1
endif
endif
if rpt_level==5
save_5sn=save_5sn+1
if current_level<rpt_level
save_5sn=1
endif
endif
/*加入点
current_level=rpt_level
endif

if rpt_level==2
myidx=itos(save_2sn)
endif
if rpt_level==3
myidx=itos(save_2sn)+"."+itos(save_3sn)
endif
if rpt_level==4
myidx=itos(save_2sn)+"."+itos(save_3sn)+"."+itos(save_4sn)
endif
if rpt_level==5
myidx=itos(save_2sn)+"."+itos(save_3sn)+"."+itos(save_4sn)+"."+itos(save_5sn)
endif
/*加入点
endif
