BOM table relations to compare model name

Forum|Forum|6 years ago
December 4, 2019
4 replies
3273 views

Hi All,

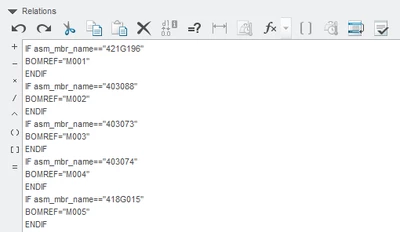

I have a BOM table with custom BOM Balloon parameter called BOMREF. In BOM relations, I am comparing asm_mbr_name to the typed in string value and then adjusting value of BOMREF parameter using if statement. See screen shot below for one of the assembly.

I want to automate this process so that I don't have to type the string value every time I change the assembly. It should automatically pick it up from file name.

For manufactured parts, the file name is always of the format XXXGYYY.prt/asm where XXX and YYY are unique numerical numbers or integers. Example file name would be 421G196.asm.

My idea is to write relation which looks at the format of file name and if the file name is as per the format above then it should assign BOMREF a value of "M" + "AAA". where "AAA" is a sequential number starting from 001 and going up to rpt.index in the BOM table.

Any idea on how to do it is highly appreciated.

Thank you in advance.

Regards

Danish

General

W

Warren_M

10-Marble

If I read this correctly, you want to automate the BOM on the drawings.
Basically what I have done is to open the template directory and find the inlbs_part_solid start part. Once open, go to tools, parameters, and add the other parameters you want to see. Then save it. Same goes for the Assembly inlbs_asm_design and save. I am attaching a screen shot of the parameters I use in the parts and assemblies.
Once you have them in, open you start format in the template directory,(whatever your company uses XXX_a.frm, XXX_b.frm...) and in the appropriate boxes, type in text lines (for Drawn_by) &Drawn_by (for Date) &date, etc. and save.
Go back to Creo and create a test part. Fill in the "Value" column in the parameters and save. Then create a drawing of the test part and add the format to see if it works as planned.
Now when you create a new part, the parameters "Value" column will need to be filled in. When you create a drawing, the title information will be filled in automatically. The line that needs to be filled in at the part level is the "Description" line in the parameters on the parts. When you create a drawing of the assembly, it should populate the BOM as well as fill in the title block.
It's been a while since I have had to do this so I'm not sure if I have missed anything. I'm sure there are others that can help as well.
Good luck - Warren

D

Danish_Naeem

Author

1-Visitor

Hi WMoffatt,

I think you are talking about the title block on the dwg which I already have sorted. It is doing what you are describing.

My problem does not relate to title block on dwg rather it relates to BOM Balloons on dwg. In BOM Balloon table relations I want to get rid of manually typing the file name to associate a custom BOM Balloon number to it. I want a relation where it looks at the file name format of the assembly member and automatically assign a custom BOM Balloon to it and then keep incrementing the BOM Balloon numbers for next part in the list until file name stops satisfying the format requirement.

I hope that makes it clear.

Danish

T

TomU

23-Emerald IV

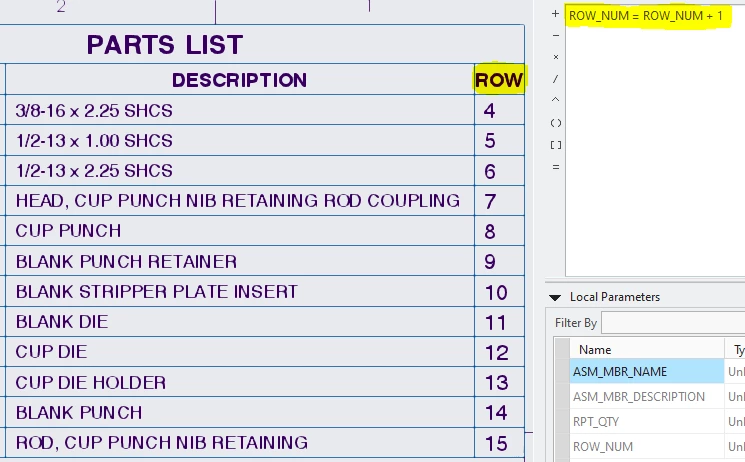

Parsing the file name is easy enough, but I'm not sure how you keep track of the next available index number. Repeat region relations are evaluated once per table row with no consideration of what came before or what's coming next. You might be able to increment a local repeat region parameter up once per row, but I have my doubts. It would take some testing...
