Breaking a circular centerline.

  • February 4, 2016
  • 2 replies
  • 1953 views

Question:  How do you break a circular centerline?

I have an array of holes in a circular pattern.

Their centerline appears in a circular pattern.

I need to show only a partial arc instead of a complete circular centerline.

What's the trick to do this?

Thanks,

Sergio


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

TomD.inPDX17-Peridot
17-Peridot
February 5, 2016

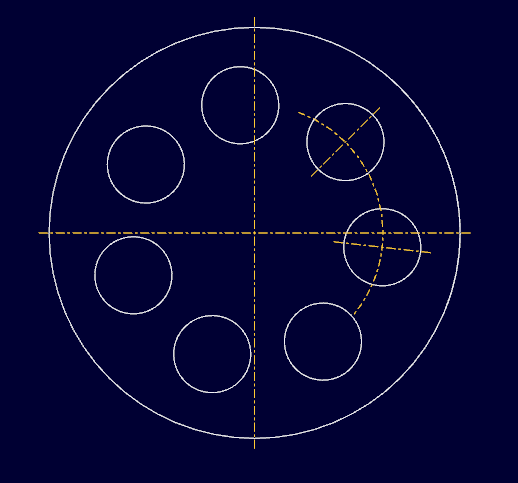

You're going to have to sketch a fake arc and the radial centerlines lines.

The only time it trims automatically is when you use a partial or detailed view where the view boundary clips the circle.

This uses an overlay view.  The partial view holds the partial bolt pattern centerline, and the full view is aligned using the view origin.

You need to define an origin feature for the view so you can easily overlay them accurately.

This is Pro}WorkAround^TM #5,937,194  ...if you're keeping track

MarioSecco1-Visitor
1-Visitor
February 10, 2016

Make a geometric line circle, divide it as you whant and togle the segments to construction.
