Question

Broken view, missing break lines

  • June 29, 2023
  • 3 replies
  • 3683 views

Hi guys,



i have a problém with broken view. When i make in Visible area Tab everything is OK, I can see the break lines but when I click apply and ok and the small window disappears then the break lines disappear too … can’t understand



Thanks for help !

3 replies

M
MB_92367018-GravelAuthor
8-Gravel
June 29, 2023

I forgot to mention that the part is made with Cabling mode and I’m using creo parametric 7

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
June 29, 2023

Difficult to diagnose without a picture or model.

Attach an screenshot of the issue along with a screen shot of the view properties window of the broken view selection.

M
MB_92367018-GravelAuthor
8-Gravel
June 29, 2023

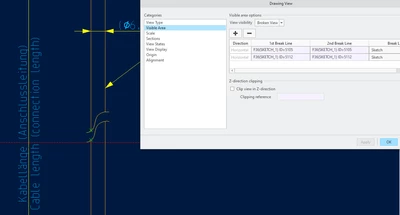

The properties:

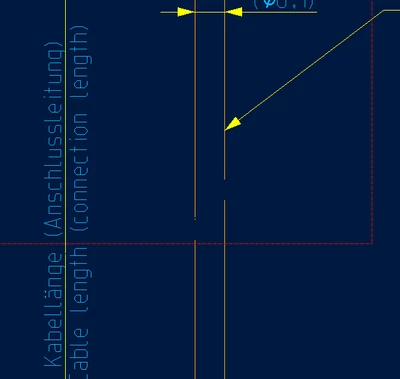

View After click OK


S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
June 29, 2023

Well, that seems random.

Have you tried re-creating the break from scratch? or tried using something other than the sketch break? To see if it's a glitch in that specific break.

Just for testing, make a new view and create a new break on the at view, just a straight break line. To see if it is a glitch in that specific view.



Other tests would be make a test drawing, add the cable to that drawing, add view with break. To see if it is a glitch in the original drawing.

Last one would be to make a new test cable model.



All silliness but if it's a glitch in one specific thing, maybe you can work around it.

P
PTerribleCAD13-Aquamarine
13-Aquamarine
October 27, 2023

I'm seeing the same problem with a part drawing. More Creo garbage. Thanks PTC!
