CABLING FLAT ISSUES

  • April 16, 2025
  • 1 reply
  • 611 views

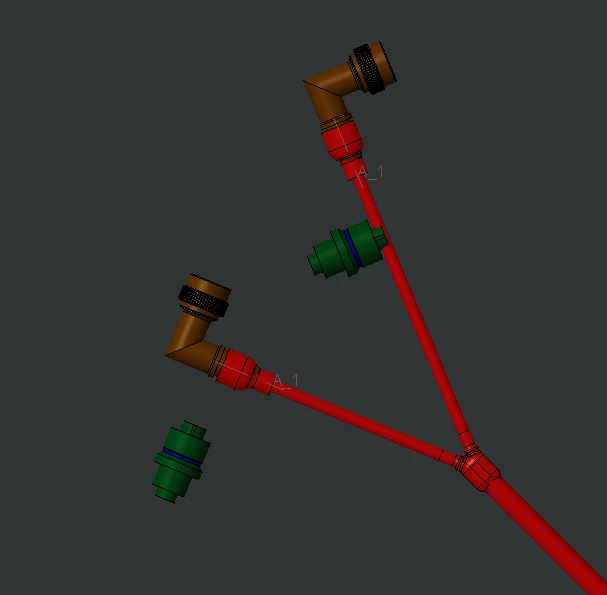

I have an issue with connectors that moved off the harness in the flat state. I actually have several like this. These were done by an outside firm and handed off to me to make changes. In the Model tree in the flat all the ones that are out in space are all highlighted in RED as Regeneration Failed features. I also have some features in the model tree that have failed as well but are fine in the main harness assembly.

1 reply

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald III
23-Emerald III
April 16, 2025

I am not a cabling guru, but are the problem parts constrained to different objects such that when they are in the flat state, the problem parts don't know how to be positioned?

N
NM_129687861-VisitorAuthor
1-Visitor
April 16, 2025

All of the connectors were all constrained as 'Fix'. This is a pretty complex harness, with 15 plus connectors.
