Can Creo Schematic create color coded pinouts like Solidworks

  • December 16, 2019
  • 1 reply
  • 1168 views

Does Creo Schematic (or any plugin product to it) create color coded plugs automatically like Solidworks?

What I mean is the wire coming in shows on the view of the plug.

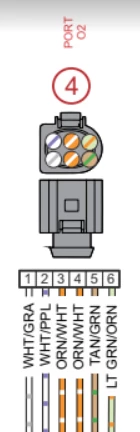

Here is an example:


I have a client that is considering switching to Creo Schematic which would help me out a lot.... But this is the one feature I can't seem to replicate in Creo.

    1 reply

    P
    PetePickettII14-Alexandrite
    14-Alexandrite
    February 12, 2020

    It cannot that I know of currently.  If Creo had more control over the color system you could push color parameters down thru into a Creo drawing and have it drive colors of surfaces off of the ports, but it doesnt.   Hopefully Jim has a fix for that sometime.  Ive asked the same Question.
