Can fillet radius be the same as the thickness of material?

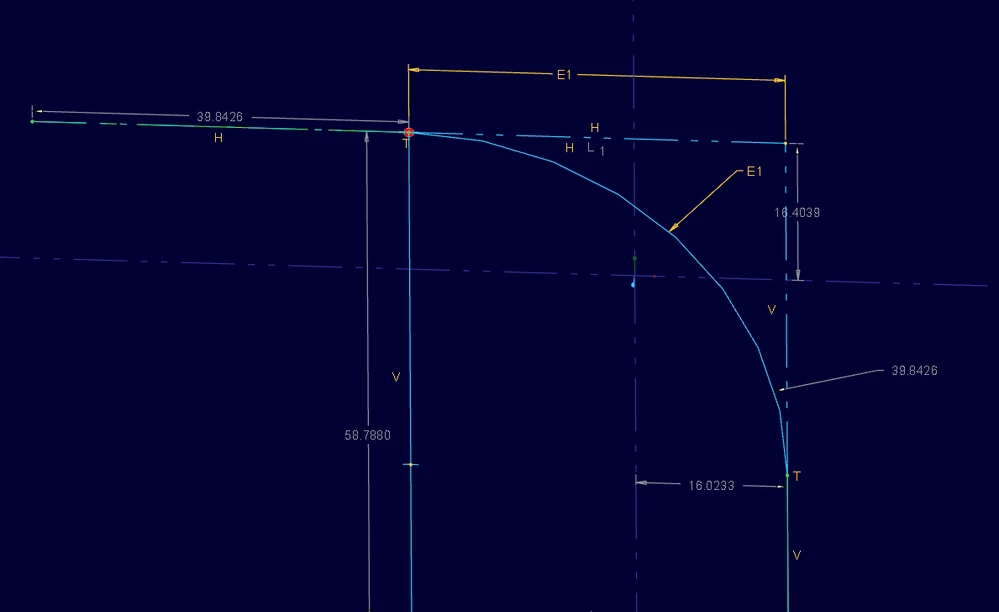

I am sketching AND extrusion. The problem I have is that Creo doesn't allow me to make the radius of the fillet the same as the thickness (0.125). See screenshot. This is bizzare. To go around that I have to draw an ARC.

Is there any way around it? And how do you deal with this?

dschenkenAnswer
2-Explorer
October 20, 2017

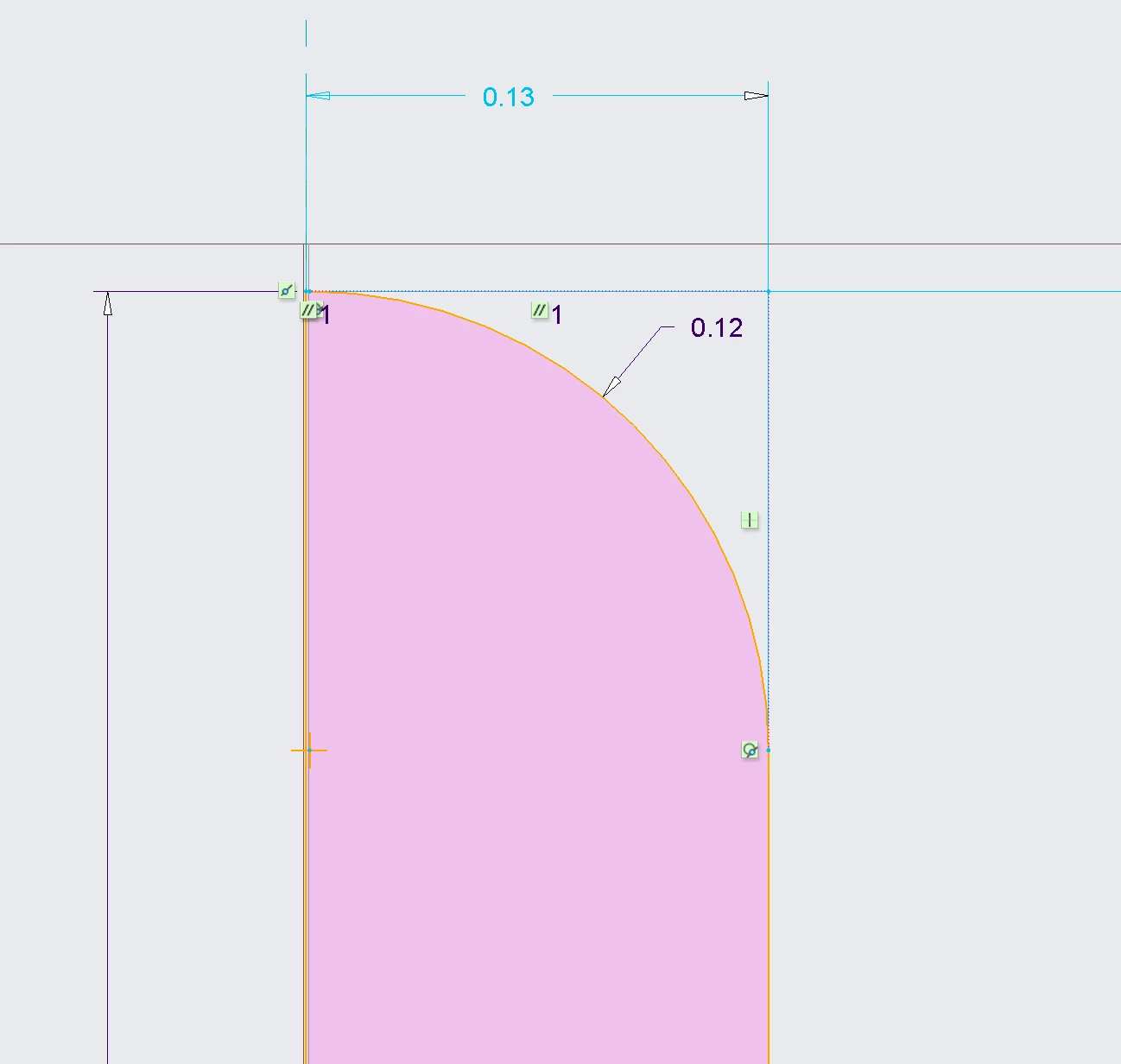

Instead of the construction line, just constrain the arc center to the nearby surface/sketch entity. This will also eliminate the need for the tangent constraint.

View in thread

5 replies

BenLoosli23-Emerald III
23-Emerald III
October 18, 2017

The problem is that you are eliminating the end line when the radius is equal to the part thickness and the softwrae cannot handle that condition. You can do a .124 radius on the ,125 thickness, but not .125. If you really need the .125, then skecthing the arc is the only method.



Translate
    pvn1-VisitorAuthor
    1-Visitor
    October 18, 2017

    Thank you!

    Makes sense. I used the ark. Shame that fillet in sketch can't be used. Works on other software.

    Other option I was concidering to add fillet later to the extrusion. But in case of the sweep, fillet doesn't apply continuously.

    Translate
    TomD.inPDX17-Peridot
    17-Peridot
    October 18, 2017

    Something like this may work... or a feature relation to make the radius equal to the thickness.




    Translate
