Solved

Can not access Dimension properties

  • December 15, 2017
  • 2 replies
  • 8362 views

Hi

Could somone please clarify as to how I can access the dimension properties.

As I first go to switch realtions, and the click on the dimension, and then right click, there should be option there to access dimensions properties for me to change the parameter name but there is no option

please can someone help me ?!



Note the the dimension change is in a prt.file



Best answer by MartinHanak

Hi,



  • open part
  • double-click part geometry ... dimesions related to selected piece of geometry appear
  • select dimension, press RMB and use Properties command from context menu

Do not open Relations dialog box !!!



2 replies

StephenW
StephenW23-Emerald III
23-Emerald III
December 15, 2017

Is the .prt file locked (as in PDMLink/Windchill)? (most common problem I have seen)

When you right click, are you getting any right click menu or just no "properties" option? New users sometimes don't realize you have to click and hold right mouse button longer than other programs. Not sure if that applies to you.





H
HumzaS1-VisitorAuthor
1-Visitor
December 15, 2017

I don't know if the file is locked but when I hold right mouse button, the only options I am getting are

-Pick from list

-Lock

-Value

-Move

-Move Text

-Exit Edit Dimension

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
December 16, 2017

Hi,



  • open part
  • double-click part geometry ... dimesions related to selected piece of geometry appear
  • select dimension, press RMB and use Properties command from context menu

Do not open Relations dialog box !!!



K
kblacker10-Marble
10-Marble
January 19, 2024

Hello Martin,

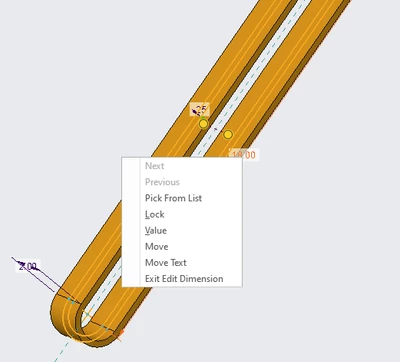

I am using Creo 9.0 and have this exact same problem as HumzaS. I want to change the name of a dimension, but I cannot access dimension properties. I tried following the solution you outlined. In the part file, double click on geometry, then select the dimension and RMB, but I do not see Properties in the menu that pops up. This is what I see:




Is there something I am missing here?

StephenW
StephenW23-Emerald III
23-Emerald III
January 19, 2024

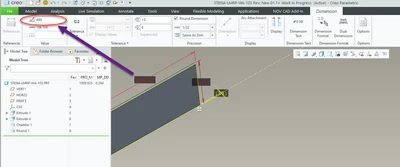

Look at the tab up top. The dimension properties has changed over the years.

You can edit the name of the dimension in the ribbon.
