Can Pro/E find the centroid of a cut?

  • April 28, 2011
  • 2 replies
  • 1944 views

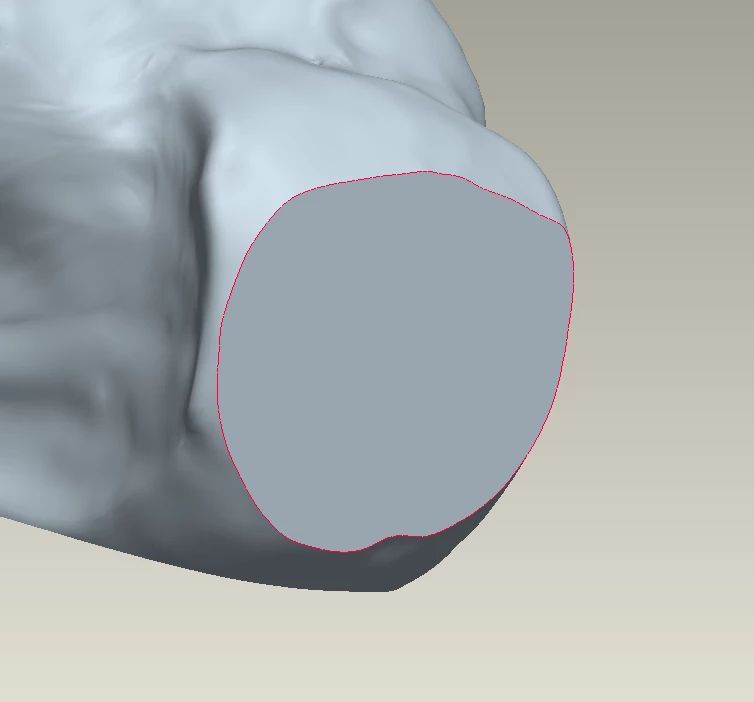

I made a cut through an irregular IGS model as seen in the attached picture. Can pro/E create a curve around that edge (selected in RED) and then calculate it's centroid? I'd like to put a point at this centroid.


i'd like to make 2 x-sections, then create a point through their respective centroids, and connect these 2 points with an axis. I'm not sure if x-section analysis can do that.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

P
ptc-19327451-Visitor
1-Visitor
April 28, 2011
I think that if you measure of the area of the face you can get the
centroid as a co-ord system added. But I think you need BMX, or similar
analysis extension.

I do know that if you check: Analysis/Model/X-section mass properties;
you will get the area of the face that is cut by a specified plane, and
a center of mass (centroid?) of the face.



This is in WF 5, I think WF 4 has the same properties.





Christopher F. Gosnell



FPD Company

124 Hidden Valley Road

McMurray, PA 15317
