Question

Can't rotate group because of a part.

  • December 19, 2021
  • 1 reply
  • 2453 views

Skärmbild 2021-12-19 202945.png

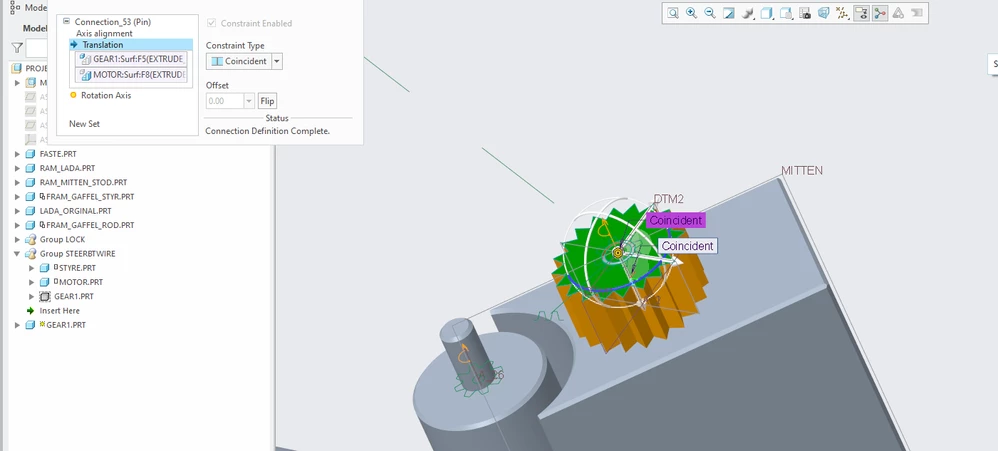

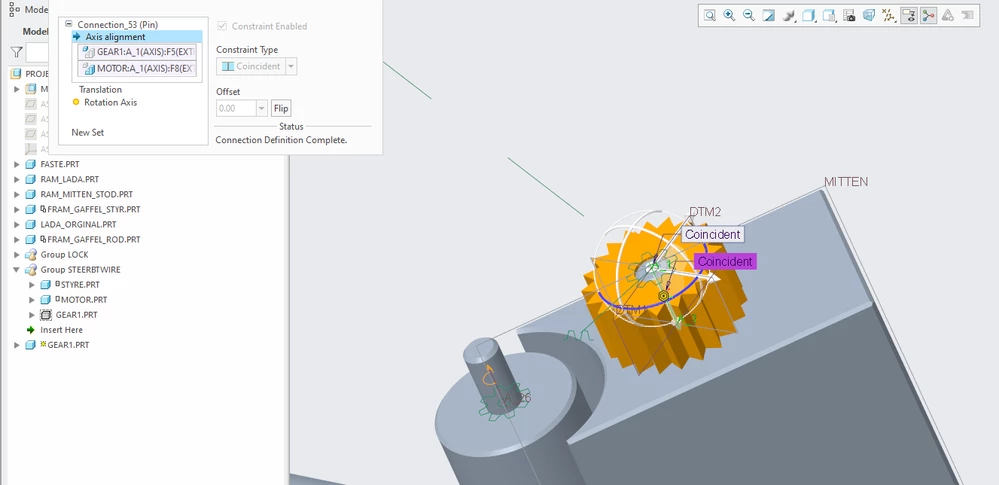

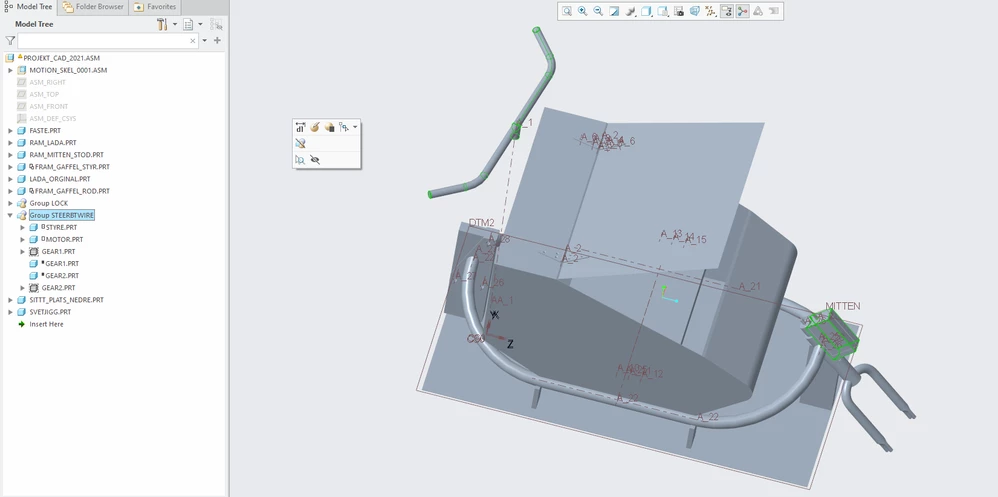

The handlebars are barely movable when the parts "GEAR1" and "GEAR2" are unsuppressed but otherwise perfectly movable when they are suppressed. Are they incorrectly attached to the assembly?

Skärmbild 2021-12-19 203153.pngSkärmbild 2021-12-19 203137.png

1 reply

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
December 19, 2021

To test the constraints of individual components you can disable the assembly constraint rather than suppressing the component. This should allow you to determine if a specific constraint is problematic.



You could also use the DOF functionality in mechanism to study how many degrees are still free.

    E
    EJ_1003031810-MarbleAuthor
    10-Marble
    December 26, 2021

    I'm unfamiliar with disabling assembly constraints. Where do I do that?

    tbraxton
    tbraxton22-Sapphire II
    22-Sapphire II
    December 27, 2021

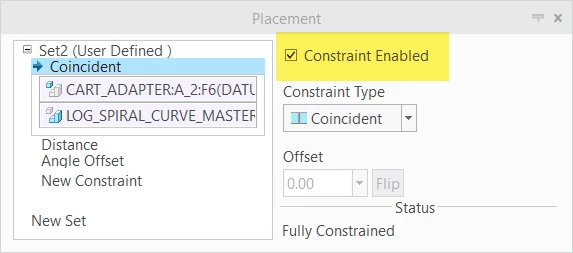

    it is in the placement tab under component placement in assembly mode.
