Can we automate line break option in Creo drawing

Hello ,

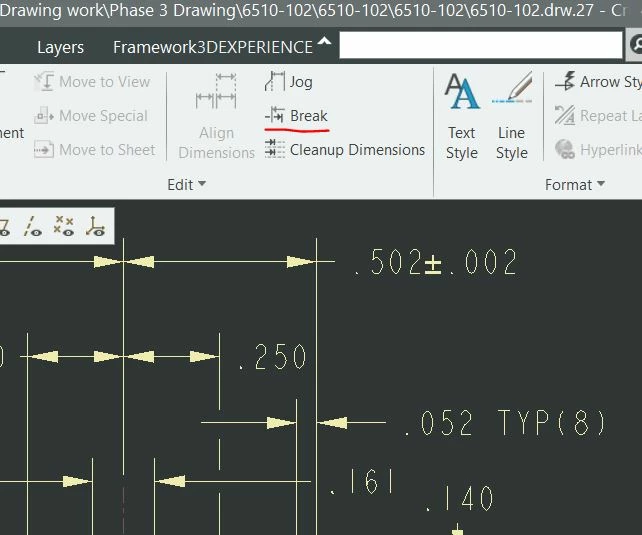

can we automation line Break option in Creo drawing so that we dont have to do it one by one and there are lot of such dimensions in drawing which are overlapping. If there is a mechanism which can detect overlapping dimensions and provide line beak can save lot of time in drawing





Mahesh_Sharma
Mahesh_SharmaAnswer
22-Sapphire I
April 26, 2023

Hi @RR_10658669



As of now, there is no config option to enable Break as default. I am unable to locate any Idea, you may submit a new one.



Thanks.

View in thread

4 replies

FriedhelmK17-Peridot
17-Peridot
April 25, 2023

Hello,

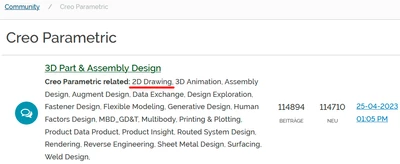

I think that you have chosen the wrong forum.

You'd better try there::


Success



Translate
StephenW
StephenW23-Emerald III
23-Emerald III
April 26, 2023

I don't think there is any automatic line break options.

Translate
Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
April 26, 2023

Hi @RR_10658669



As of now, there is no config option to enable Break as default. I am unable to locate any Idea, you may submit a new one.



Thanks.

Translate
Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
April 26, 2023

What you're trying to do is incorrect per ASME Y14.5-2009, paragraph 1.7.2.1 and Fig. 1-11.  Extension lines should ONLY break for arrowheads and text.
