Can we get part name just beside Balloon in creo drawing

  • February 16, 2017
  • 2 replies
  • 1919 views

I have some requirement. I want to get part name just beside Balloon in creo drawing automatically. Currently I am putting it manually.

Is there a way to get it automatically.

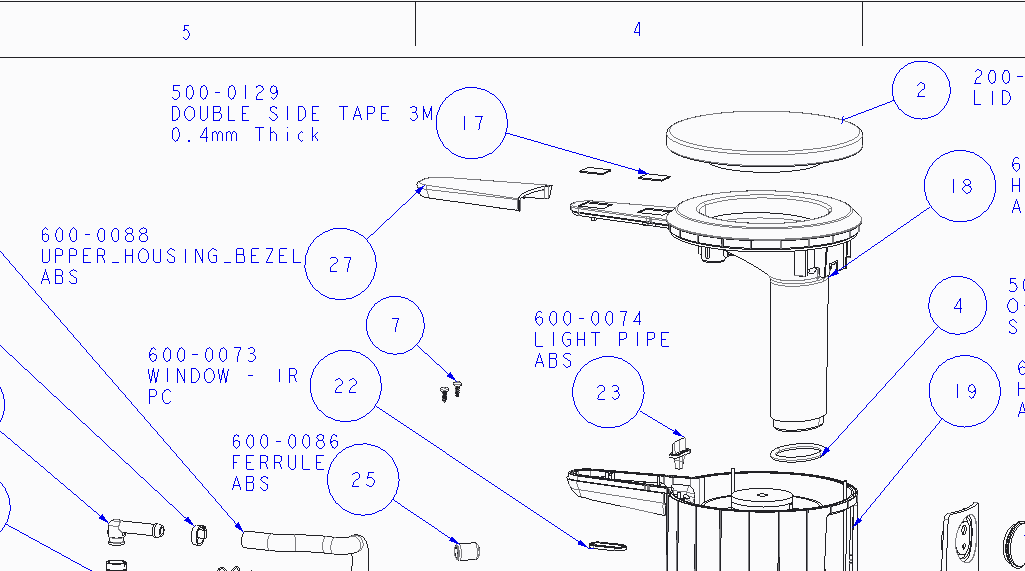

Attached snapshot for better understanding.


2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
February 16, 2017

Assuming you are talking about BOM Table balloons, I believe so. You will need to customize your BOM balloon to show a part number parameter (or file name if it is your part number). There is some good info in the post below.

BOM BALLOONS WITH JUST PART NAME - NO GEOMETRY

    M
    mender12-Amethyst
    12-Amethyst
    February 16, 2017

    If the note has a fixed offset to the circle, then it can be done with a custom bom balloon.  The picture shows the note sometimes left/right/above/below the balloon, which doesn't have a clear means to define it without having two objects (as you are doing currently).

    Chris3
    Chris321-Topaz I
    21-Topaz I
    February 16, 2017

    For the case shown, you could just have multiple symbols and then do an ALT symbol for those cases in which you need it in an alternate orientation.
