chamfer dimension from apex to surface

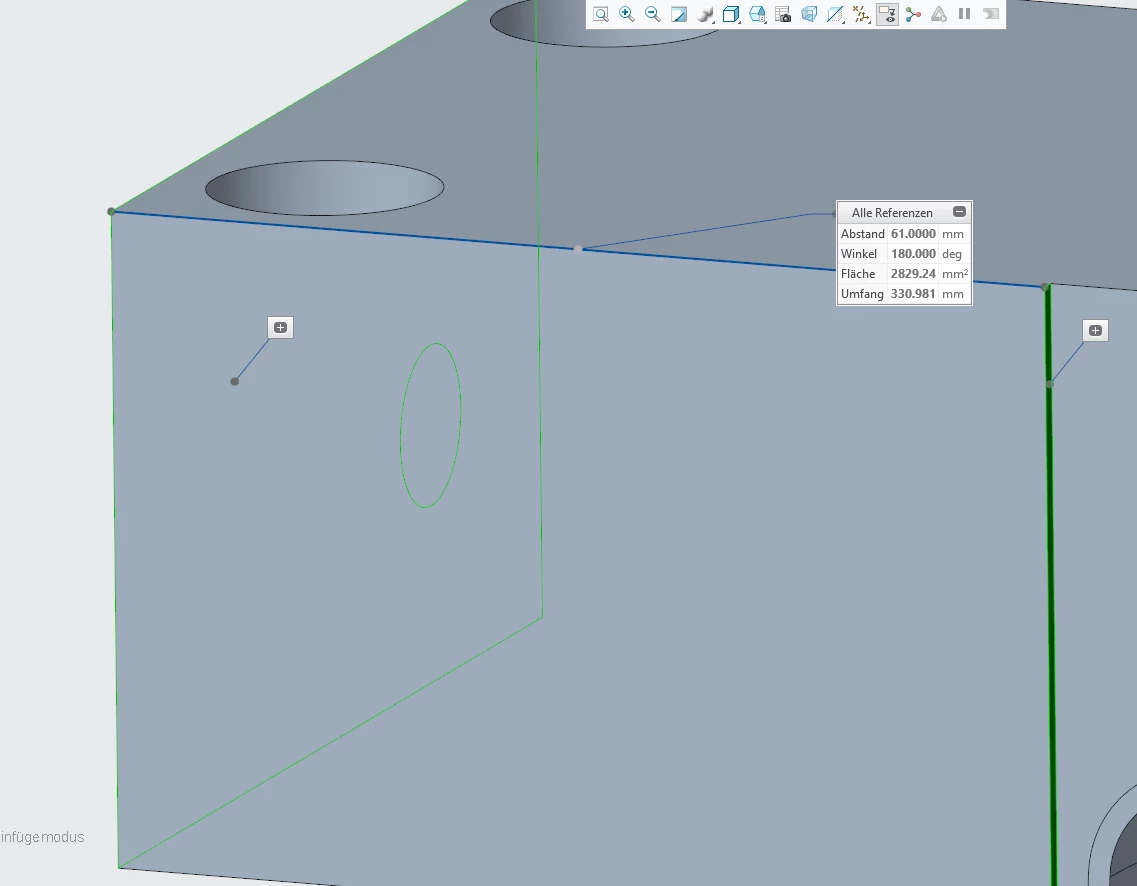

This 1st picture is without chamfer and if I measure it. it shows 61mm (Abstand)

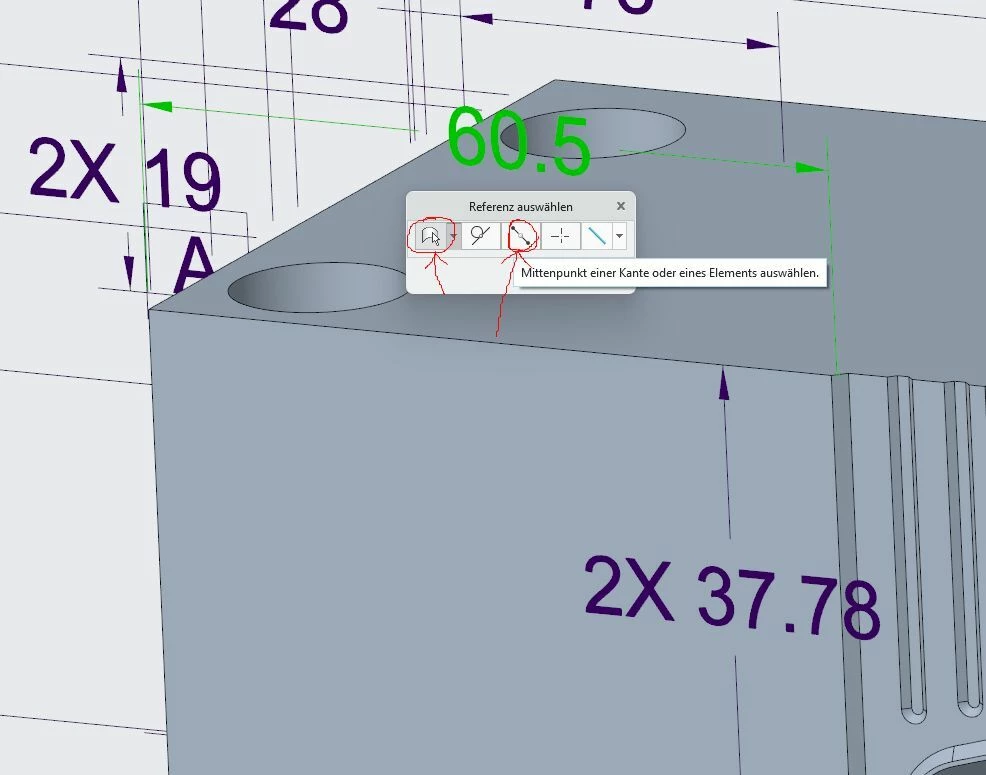

This 2nd picture is after a put chamfer. but when I try to measure from the middle of chamfer to the side surafec it shows 60.5mm.

While I was annotating, I chose the two marked (in red) to measure.

So How do I correctly choose the apex of the chamfer?
I should be getting 61mm

21-Topaz I

60.5 is what I would expect for the middle of a 1 mm chamfer. Select the far endpoint of the chamfer to get 61 mm.

There is always more to learn.

Answer

21-Topaz I

60.5 is what I would expect for the middle of a 1 mm chamfer. Select the far endpoint of the chamfer to get 61 mm.

Translate

There is always more to learn.

Author

7-Bedrock

Ah I don’t know why I didn’t think of that.
Now I realize was so unnecessary and dumb, sorry I waste your time.

Translate

2 replies
