Question

Change name in title block when multiple parts in drawing

  • April 12, 2017
  • 2 replies
  • 2110 views

Hi everyone,

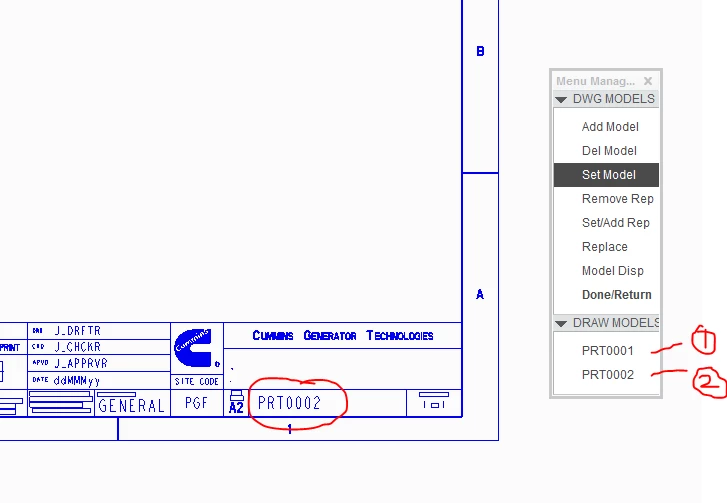

           I have added 2 parts in my drawing. suppose 1st part in ABC and 2nd part is XYZ. I have place views for part ABC and same name comes in title block (ABC) as I added this part 1st. but now I want change is name in title block ABC to XYZ without removing ABC part from drawing. so How can I do it?

Thanks,

Kunal Patil

2 replies

T
TomU23-Emerald IV
23-Emerald IV
April 12, 2017

Activate the part you want to drive the title block and then reapply the format.  The title block tables will be recreated and will read from the active model.

    M
    mender12-Amethyst
    12-Amethyst
    April 12, 2017

    Set the new model current, edit the note, it'll be something like '&NAME:0'. Make that be &NAME:MDL' instead (or use the runtime id for the new model if you know it) and it'll call out from the new model.
