Question

Combined States in a drawing View


1st...
I cannot figure out how to post a new question on the users forum website.

2nd...


Wildfire 4.0.

I'm trying to show a Combined State for a view in a drawing.

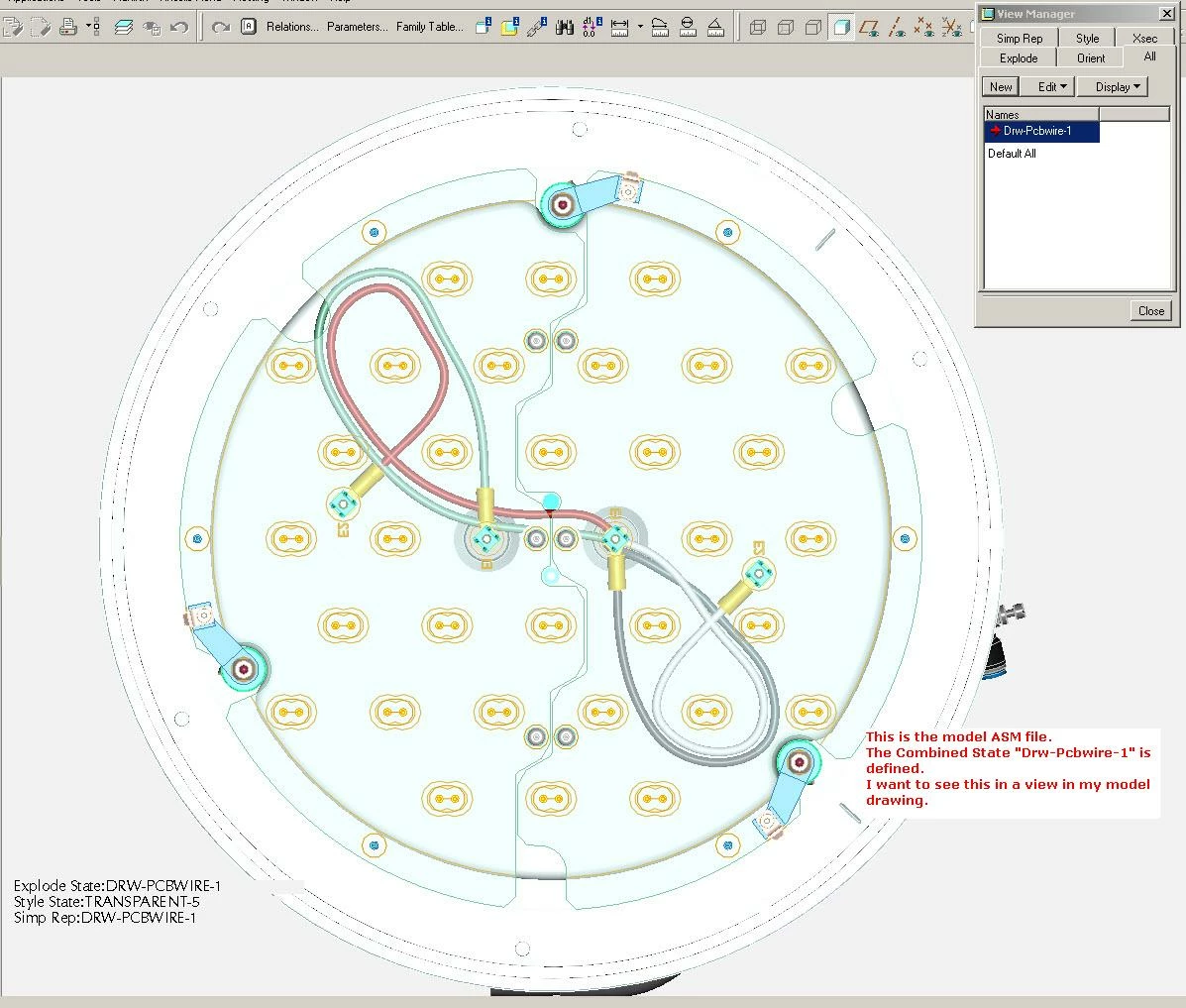

I set-up the combined state in the ASM model file. And I see everything I want to see, just right.

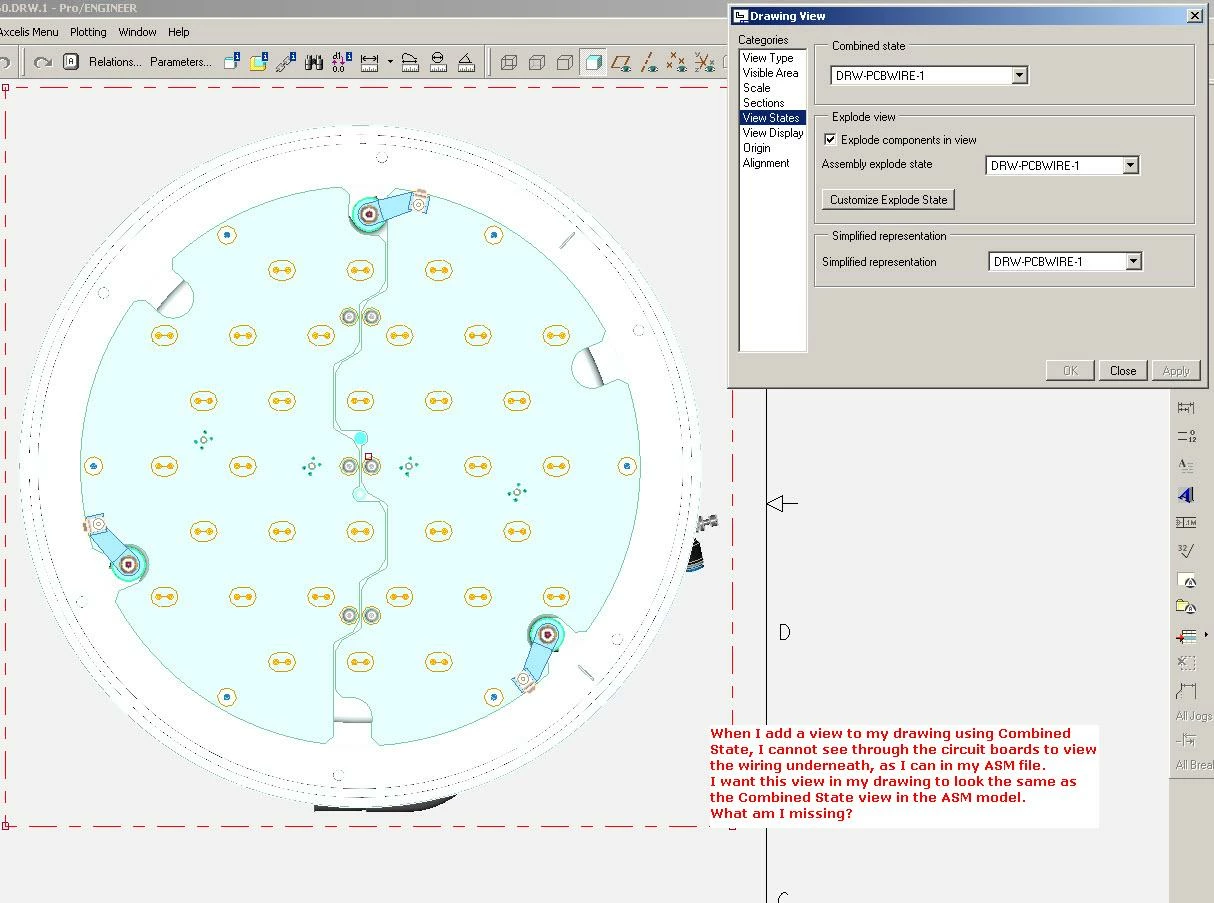

When I add a view to the drw file using (or changing to) the Combined State, I cannot see through the circuit boards to see the wiring underneath, as I can in the ASM file Combined State mode.

What am I missing?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

jstone12-Amethyst
12-Amethyst
October 29, 2013

I'm on WF4


See Help section: Detailed Drawings/To Show Models in Various View States


From help section:


"However, drawing views do not recognize style states stored in an assembly
combination state."


There are lot's of other excpetions too.


Thanks,


jef

Translate
ptc-19327451-Visitor
1-Visitor
October 29, 2013
I think your only option is to edit the drawing view component visibility of the circuit board to 'wireframe' or 'phantom transparent' or similar.


Christopher F. Gosnell

FPD Company
124 Hidden Valley Road
McMurray, PA 15317
PH:724.941-5540
FX:724.941.8322
www.fpdcompany.com
----------
Translate
ptc-49782681-Visitor
1-Visitor
December 23, 2013



In Reply to Mathew Palazola:



1st...
I cannot figure out how to post a new question on the users forum website.

2nd...


Wildfire 4.0.

I'm trying to show a Combined State for a view in a drawing.

I set-up the combined state in the ASM model file. And I see everything I want to see, just right.

When I add a view to the drw file using (or changing to) the Combined State, I cannot see through the circuit boards to see the wiring underneath, as I can in the ASM file Combined State mode.

What am I missing?


HI Mathew


I to had a same problem, please let me know if you got an answer

Translate
