Component wire frame in cross section?

  • April 2, 2014
  • 2 replies
  • 4874 views

Hello,


I have a component in a large assembly that displays fine (no hidden lines, tangent lines dimmed) normally, but when I show a cross section (that doesn't intersect the component at all) the component displays as wireframe and I can't change it?? Any ideas or thoughts?

I've tried excluding this component from the cross section (even though it's untouched) to no avail.


I am working in Creo 2


denny


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

P
ptc-48646031-Visitor
1-Visitor
April 2, 2014

having this same problem right now!

D
dcoauette1-VisitorAuthor
1-Visitor
April 3, 2014

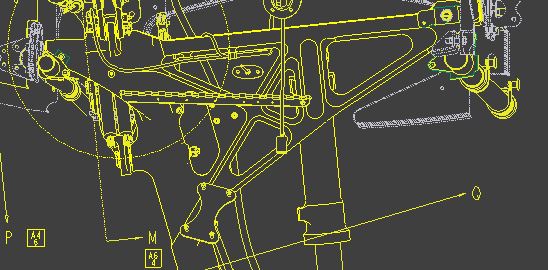

with cross section (which is placed 30 inches away from the part)

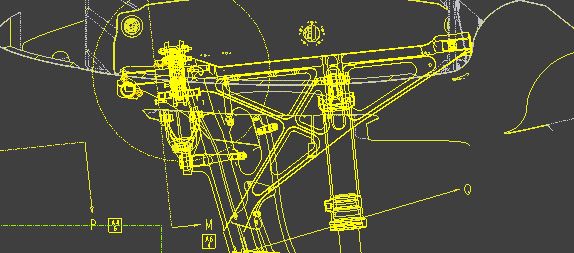

no cross section in view
