Cosmetic Thread in drawing

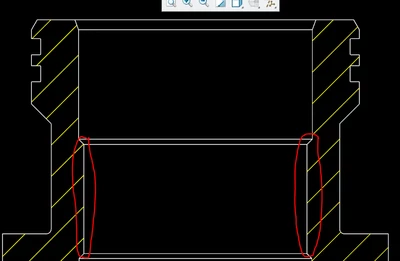

Hi all, my cosmetic threads in my drawings are displaying through the part on a section view.
How can I get it to where the vertical lines are not showing?






kdirth
kdirthAnswer
21-Topaz I
January 30, 2023

The display of the horizontal and vertical lines cannot be controlled independently in the view properties.  You will need to use Edge Display to either hide the horizontal lines or show the vertical lines.

There is always more to learn.
View in thread

11 replies

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
January 23, 2023

Cosmetic threads are represented by surfaces in the part models. You need to filter the quilts in the drawing view.



Try implementing this in your drawing:

https://www.ptc.com/en/support/article/CS27579

Translate
JG_1055963210-MarbleAuthor
10-Marble
January 23, 2023

Thank you! I will try this

Translate
StephenW
StephenW23-Emerald III
23-Emerald III
January 23, 2023

If you are showing hidden lines and you want to see the thread and you are completely set on using cosmetic threads, your options are limited. In the drawing setup under File - prepare-drawing properties - detail options and look for Thread_standard and try std_ansi_imp

It reduces the amount of the vertical line. You can try the other options  and regen or repaint after each change.



When frustrated, I have erased the cosmetic and used a sketch in the model to show how I wanted it to show.

Translate
    JG_1055963210-MarbleAuthor
    10-Marble
    January 23, 2023

    Yes I usually just use a sketch as well, but a colleague of mine insists on using the cosmetic thread. So I am trying to figure this out for him.
    I will try these steps! Thank you!

    Translate
    msmith14-Alexandrite
    14-Alexandrite
    January 23, 2023

    Please try these settings documented in article CS367415:

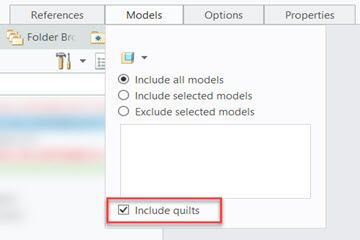

    1. Create/ Redefine cross-section in the Part/Assembly from View tab and then the Section ribbon and Model tab > Include quiltsInclude_quilts
    2. In the Drawing, set detail option hlr_for_threads to no
    Translate
    JG_1055963210-MarbleAuthor
    10-Marble
    January 23, 2023

    Hi I did this but it removes the whole comsetic completely.




    I still want these vertical cosmetics. Just not the horizontal ones.

    Translate
    kdirth
    kdirth21-Topaz IAnswer
    21-Topaz I
    January 30, 2023

    The display of the horizontal and vertical lines cannot be controlled independently in the view properties.  You will need to use Edge Display to either hide the horizontal lines or show the vertical lines.

    Translate
    There is always more to learn.
