Cosmetic Thread of drafted surface

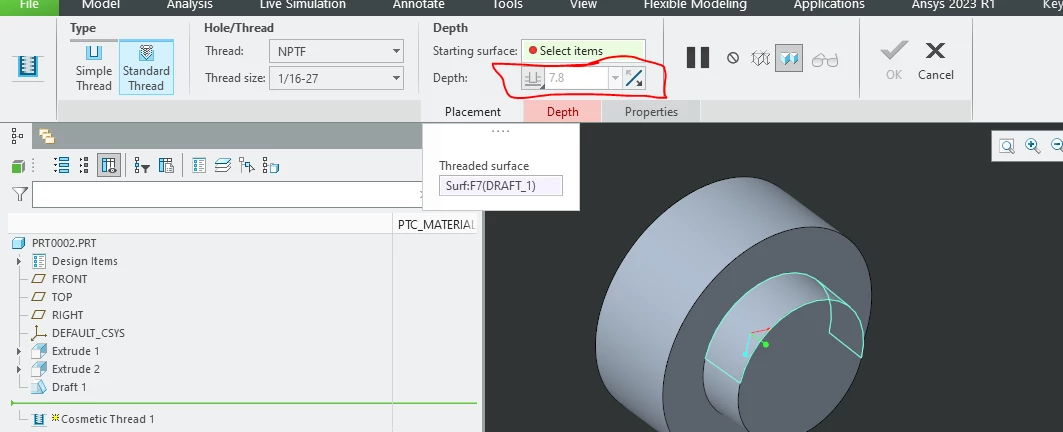

When i apply standard type of cosmetic thread on drafted surface, depth value is grey out as seen in screenshot available in attachment

4 replies

kdirth
kdirth21-Topaz I
21-Topaz I
Feb 5, 2024 7:32 PM UTC

You need to select the surface to start the thread from first (end of the cylinder).



Also, it has defaulted to a tapered pipe thread which has a standard length.

Translate
There is always more to learn.
himungan6-ContributorAuthor
6-Contributor
Feb 5, 2024 7:37 PM UTC

No difference. It is just the reference for depth value

Translate
kdirth
kdirth21-Topaz I
21-Topaz I
Feb 5, 2024 8:05 PM UTC

If you are trying to create a standard straight thread on a drafted cylinder, you need to create the cosmetic thread then draft the cylinder.  Otherwise Creo defaults to a tapered pipe thread.

Translate
There is always more to learn.
