Cosmetic threads? Hiding threads in hidden line removed view

Forum|Forum|12 years ago
January 16, 2014
3 replies
13609 views

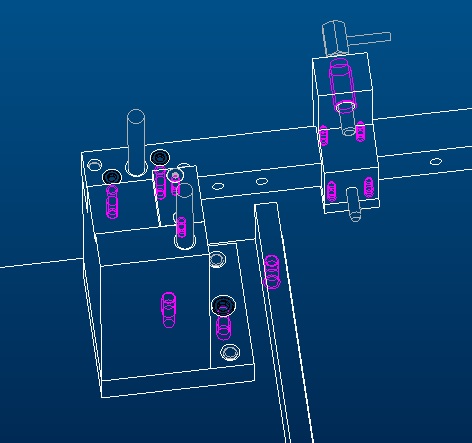

In the model below, I have the hidden lines turned off yet you can see the threads. Are these cosmetic threads and if so (or not), how do you turn them off off when just printing the model (not a drawing)?

Thanks, Dale

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

D

dschenken

1-Visitor

In the view display properties there is a setting for hiding quilts, which is what Cosmetic threads are.

This setting is not available in section views - there is a setting when creating the section to hide quilts when the section is made.

Dale_Rosema

Author

23-Emerald III

I am in WF5/Creo if that makes a difference. I do not see a setting for hiding quilts in View tab.

J

John.Pryal

1-Visitor

Hello Dale,

i would think creating a layer & adding the threads to it would be the best way to manage this. That way you can have them visible on your drawing but turned off in your part. Remember to change your drawing layer status to "ignore display status of model".

John

Dale_Rosema

Author

23-Emerald III

Acutally, I just was to do it temporarily for a quick print of the model for discussion. It confusses some when they don't understand what all the extra lines are.
