Question

counting bends

  • September 25, 2019
  • 3 replies
  • 1711 views

Hello,



I would like to know if it's possible to count the amount of bends in a sheetmetal profile.

What feature does a bend belong to, other than an edge? Because not every edge is a bend.



Thank you.

3 replies

kdirth
kdirth21-Topaz I
21-Topaz I
September 25, 2019

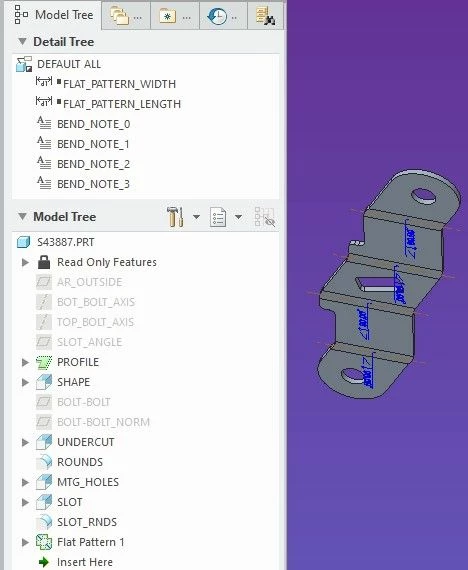

When you create a flat pattern, a note is made for each bend.


There is always more to learn.
Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
September 25, 2019

@BWS

You can explore Bend order or search tool. Search tool will give you the numbers for features of Sheetmetal type design. But not with further details as reference edge details and all..

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
October 1, 2019

Why?  Is this to estimate cost?
