Can you create a plane from the screen view? or possibly create a plane from a custom orientation view?





Best answer by kdirth

Just for fun, a quick video.

(view in My Videos)



1 reply

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
July 27, 2023

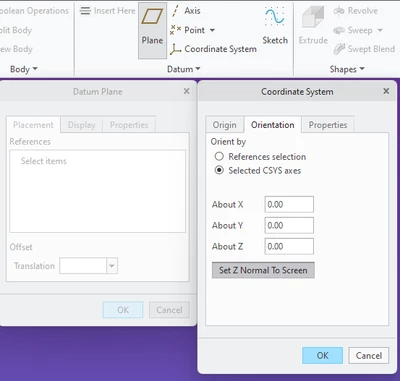

Select Plane button / Select Coordinate System button / Select a coordinate system / Select the Orientation tab / Select Z Normal to Screen (fills in orientation values) / Select OK / Change reference to Through / change Plane to XY / Select OK




There is always more to learn.
kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
July 27, 2023

You could also leave the Reference at Offset and change Translation to Z.  This would allow you to set the depth of the plane.
