Create a Square to Round Transition - Solid

  • July 11, 2011
  • 7 replies
  • 8730 views

I am having a hard time creating a solid with a square bottom and round top on parrallel planes. Can someone help me understand the best way to do this in Pro-E? I used Swept Blend, but it is not a smooth transition. Please help! thanks...


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by GregFrankland

Couple of things to remember when creating swept blends...

1) Equal number of segments is all sketches. (or use blend vertices)

2) Start points need to be in the same relative location for both sections other wise you end up with something like:round-to-square-twist.jpg

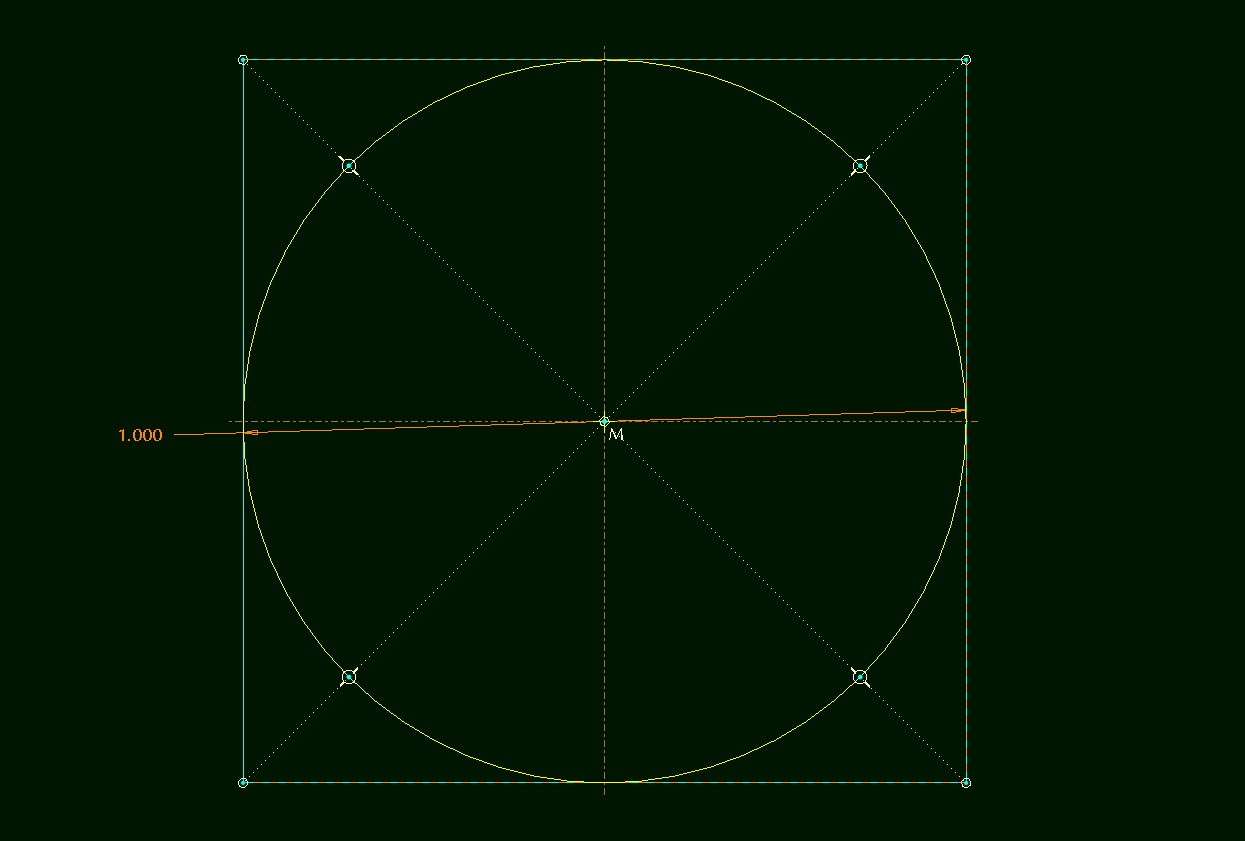

In the sketch for the circle, I broke the circle in locations relative to the corners of the square using the break tool as you see below


Does this help?

-Greg

7 replies

GregFrankland1-Visitor
1-Visitor
July 11, 2011

Colette,

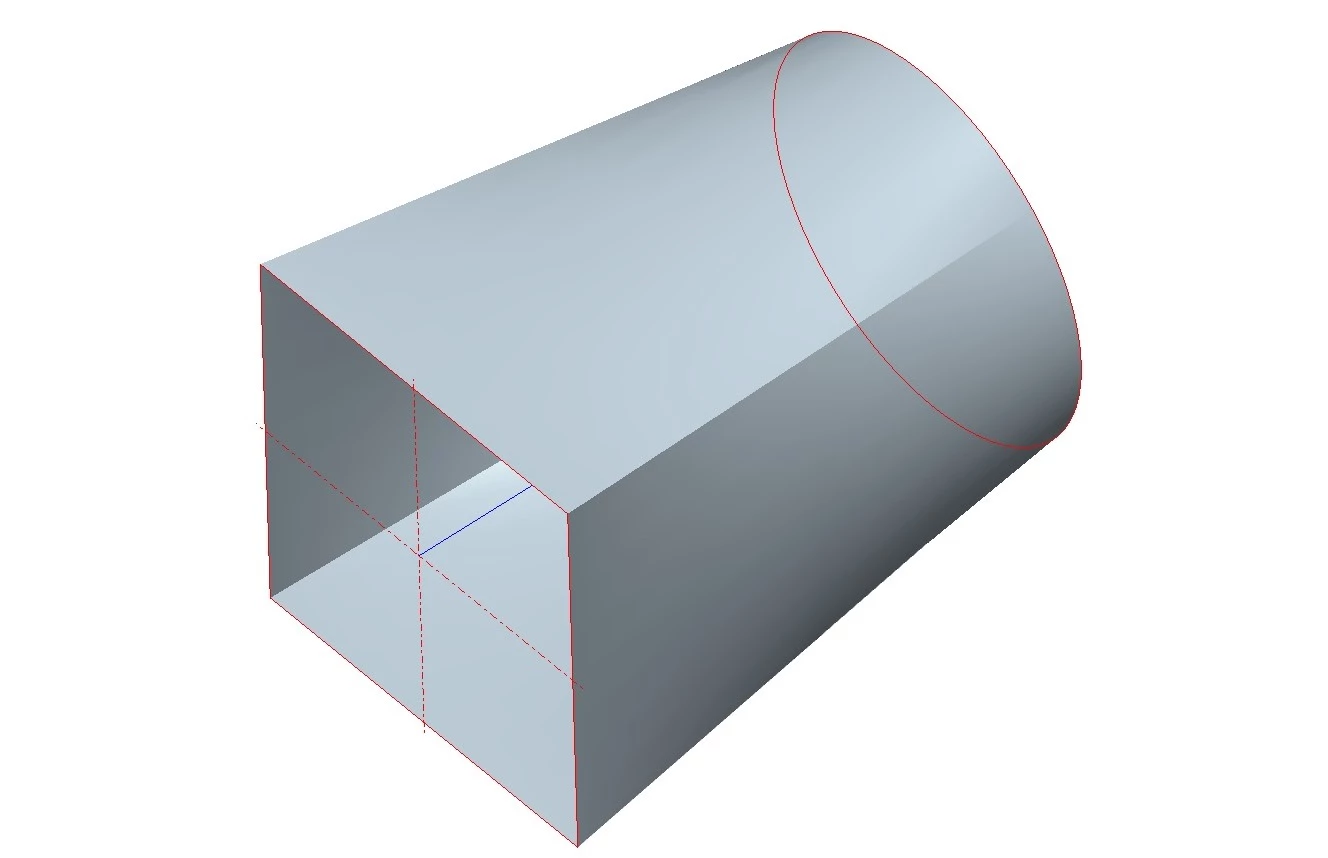

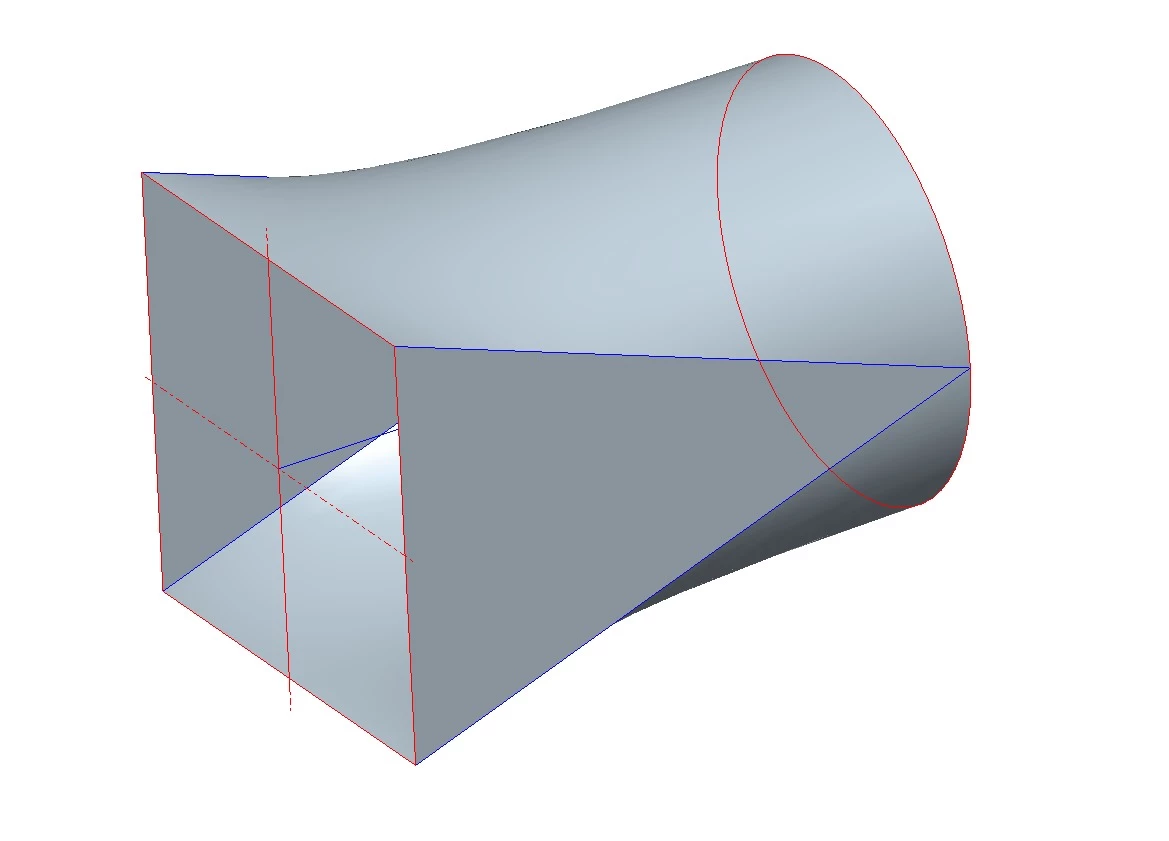

Attached are two quick shades of round to square transitions. Is this what you are referring to?

-Greg

CJK_Acuity1-VisitorAuthor
1-Visitor
July 11, 2011

Yes! Can you plesae give me a quick tutorial? thanks!

GregFrankland1-Visitor
1-Visitor
July 11, 2011

Colette,

I made the one you see in square-to-round as a swpet blend. Is that result acceptable?

If so, I will give you some pointers on that geometry. Otherwise, I can try to explain square-to-round2.

-Greg

GregFrankland1-Visitor
1-Visitor
July 11, 2011

Since it is getting late in my day and I am getting ready to head home, I thought that I would attach the Pro/E part - no IP here. I hope that you have WF5.0 and hopefully this will help you out. I also left the other transition in the model grouped and supressed if you want to take a look at it too.

-Greg
