Hi,



I try to rebuild a Project that has been created in Fusion 360.

In this Project a sheet of metal is created from a line in a Sketch and I want to do the same thing in Creo.

The thickness is 8mm.

How can I do this in Creo (with bending-radius and correct dimensioning)? Do I have to use the Sheetmetal-environment ?



Thanks,

Maik


1 reply

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
July 18, 2019

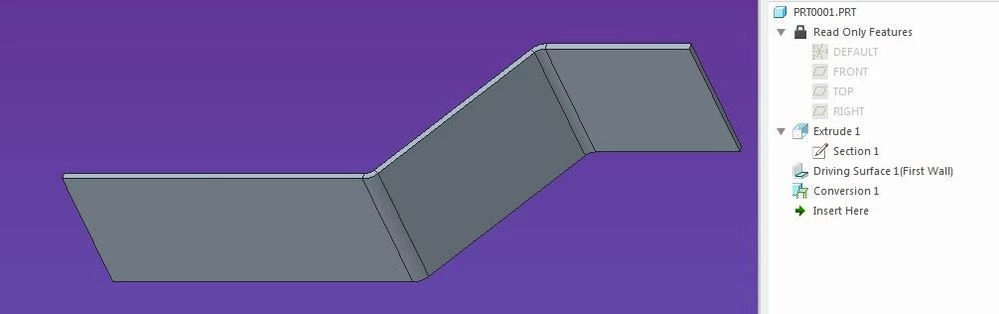

Extrude the line using thicken sketch, then convert it to sheetmetal and add bends to the corners using conversion.




There is always more to learn.
kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
July 18, 2019

You can also start in sheetmetal and skip the conversion by using Extrude.  The line sketch is thickened and bends are added, both values can be set in the tool.

There is always more to learn.
    M
    MaikTheBike15-MoonstoneAuthor
    15-Moonstone
    July 18, 2019

    Very nice. Thanks. It works perfectly.
