Create STL from assembly (3 parts)

  • May 24, 2017
  • 2 replies
  • 7282 views

Hi all,

I am trying to create an stl file from an assembly (for export and import to a electrothermal simulation software).

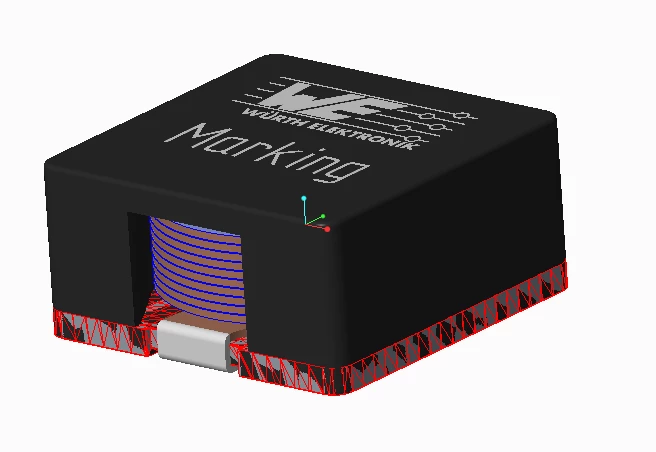

When I export the assembly as .stl, only one part is created / "meshed" (see attached picture), also when adjusting the parameters.

Anybody with any advice what to do to export the complete assembly as STL?

Thanks in advance!

Best

Annemarie

2017-05-24 14_15_15-IGS-WE-HCI-1890_WE-PERM2-REV1 (Aktiv) - Creo Parametric Student Edition (for edu.png

Best answer by ahofmann-2

Hi,

thanks for the reply.
I have either .stp or .igs and open them as assmblies. None of the file formats work to create the .stl
What can I do?

2 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
May 24, 2017

Annemarie,

Check the part ,which was not included in STL, is not a surface model.

A
ahofmann-21-VisitorAuthorAnswer
1-Visitor
May 24, 2017

Hi,

thanks for the reply.
I have either .stp or .igs and open them as assmblies. None of the file formats work to create the .stl
What can I do?

A
ahofmann-21-VisitorAuthor
1-Visitor
May 25, 2017

Any ideas / help ?
Thank you!

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
May 30, 2017

You would be helping the entire community if you described your solution and set it as the answer to your question.

    A
    ahofmann-21-VisitorAuthor
    1-Visitor
    May 30, 2017

    I created the assembly myself from the single parts and did not open -stl or .step files from the supplier.
