Creating an isometric annotation plane

Hello,

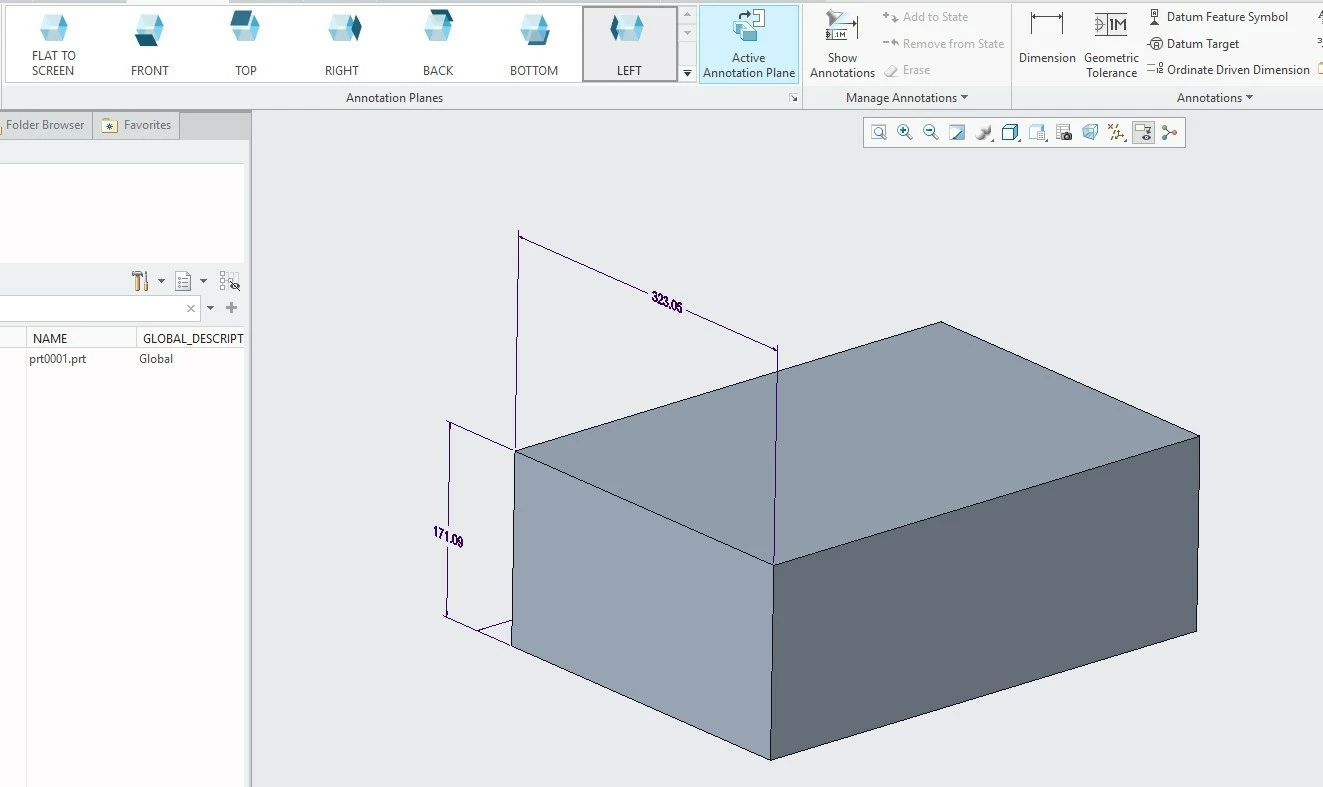

Is it possible to make an isometric annotation plane, create dimensions on multiple sides of the "cube", and use this view on a drawing template with all the dimensions shown as in the picture?



Thanks!



rburgess-2Answer
1-Visitor
September 4, 2019

The "default" dimensions you would require to be shown in your iso view created by the template can be controlled by a layer state. The "default" dimensions would however, need to be created in the part/assembly and assigned to the corresponding layer/layer group.

View in thread

5 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
September 3, 2019

@BWS

Dimensions in isometric view can display by setting drawing option allow_3d_dimension to yes. Once it is set as yes use Show model annotations to display dimensions in isomeric view.

Translate
BWS10-MarbleAuthor
10-Marble
September 3, 2019

Hi Mahesh,

Thanks for your reply,

But I only want the dimensions that are manually added.

As you said yesterday, only the dimensions parralel to the view are displayed on the template view, but

is it possible to make a "isometric view" in which I put dimensions to show on a template drawing?



Translate
Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
September 3, 2019

@BWS

It will not same for Isometric views...

Translate
