Solved

Creating Constraints

  • May 24, 2023
  • 2 replies
  • 1302 views

Hi Is there anyone  to answer mine?



I am facing an issue while assembling multiple sub assemblies.After gave a constrain to one sub assembly to another one. when i came out from edit definition assembly will goes to fixed position but we have one more degree of freedom. If i gave mate with any other, the sub assembly is not moving with respect to that one.



How to solve this issue? any one answer............!!!



Thankyou.









Best answer by Dale_Rosema

Another thing to check is that the "Allow assumptions" box is not checked. This could cause the part to be totally constrained when you have not constrained all degrees of freedom. Here I have a cylindrical constraint and a planer constraint, but it doesn't matter if the part rotates within the cylinder.






2 replies

StephenW
StephenW23-Emerald III
23-Emerald III
May 24, 2023

You will either have to share your model (or a simplified model) with the problem  (zip and attach to a reply) or show pictures (copy and paste images in a reply) of your problem with an explanation of what mates you are using and what you are expecting to happen

Dale_Rosema
Dale_Rosema23-Emerald IIIAnswer
23-Emerald III
May 24, 2023

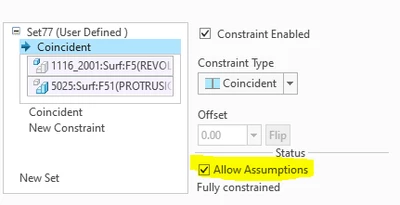

Another thing to check is that the "Allow assumptions" box is not checked. This could cause the part to be totally constrained when you have not constrained all degrees of freedom. Here I have a cylindrical constraint and a planer constraint, but it doesn't matter if the part rotates within the cylinder.
