Creating Solid /Eggshell from Cross Sections

  • August 28, 2019
  • 4 replies
  • 1950 views

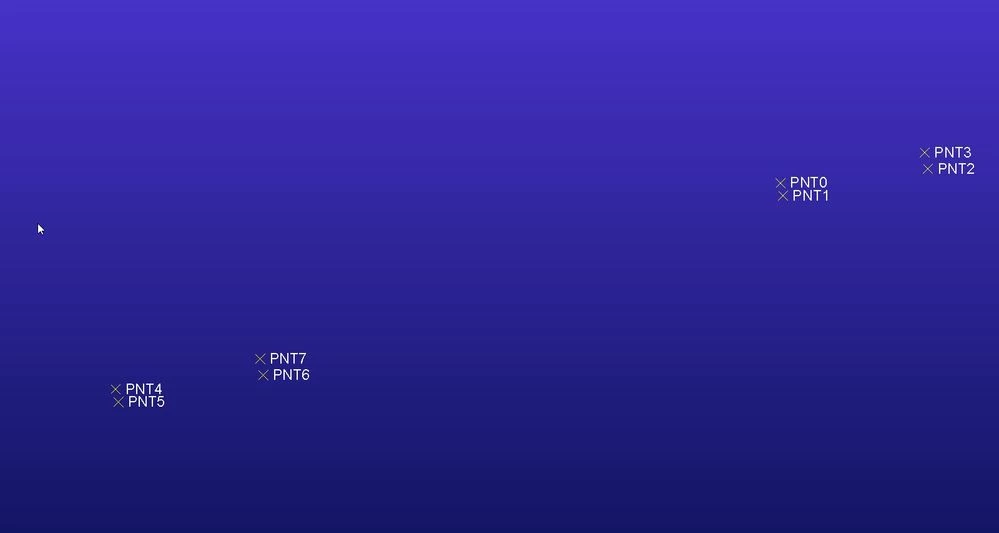

We are creating a solid model of a conductor which has a trapezoidal cross section.  The conductor traverses a random path.  We have 2D profiles all along it's path.  What is the best method for creating a solid of the conductor described by these numerous cross sections.  In the attached example, a trapezoid is formed by pts 0 to 3, and another by 4 to 7.  We wish to sweep a constant cross section joining the trapezoids formed by those 2 sets of points.

4 replies

StephenW
StephenW23-Emerald III
23-Emerald III
August 28, 2019

I think you will be using a sweep. You need to sketch your trajectory and you can use the points as reference for your section.

It's a very general question so unfortunately the answer is pretty general too.

H
Henry_H7-BedrockAuthor
7-Bedrock
August 28, 2019

So right now, I just have the 4 points for each trapezoid, without a trajectory.  One could be constructed by calculating a center point for each of the 4-point groups, but the cross section would have to be aligned with the 4 corner points.  There are a lot of cross sections, so this would have to be something that could be repeated over and over.

M
MartinHanak24-Ruby III
24-Ruby III
August 29, 2019

Hi,

it would be good if you could upload a Creo model containing points and also a photo of the real product.

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
August 29, 2019

From your description, I have no idea what you're talking about trying to make.  As suggested, a picture of the real product would make it easier, or a pic of at least an attempt to model what you're talking about.
