CREO 10.0 - Dove tail joint part

I'd like to make a slot for a dovetail-joint, where the slot narrows . How do I do this kind of extrude in a rectangular block?

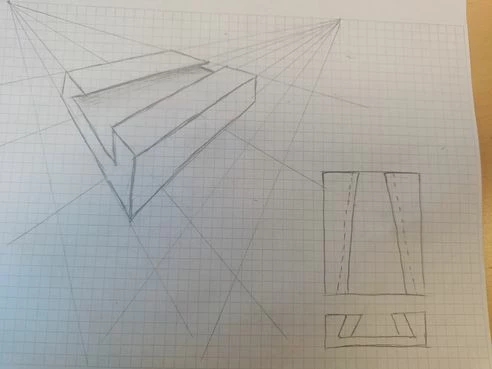

Added a quick hand drawn sketch for reference. 🙂


tbraxton
tbraxtonAnswer
22-Sapphire II
February 19, 2024

Two options come to mind:

Swept blend and a variable section sweep. The swept blend will probably be the easiest to implement for this geometry.

View in thread

4 replies

tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
February 19, 2024

Two options come to mind:

Swept blend and a variable section sweep. The swept blend will probably be the easiest to implement for this geometry.

Translate
    CM_109293991-VisitorAuthor
    1-Visitor
    February 19, 2024

    Thank you, I fond a video og swept blend and had it done in 5 minutes, after spending a silly amount of time trying all sorts of weird things 🙂

    Translate
    tbraxton
    tbraxton22-Sapphire II
    22-Sapphire II
    February 19, 2024

    See this thread for some tips on swept blend features.



    Solved: Blend not working where Boundary Blend is - PTC Community

    Translate
      BenLoosli23-Emerald III
      23-Emerald III
      February 20, 2024

      If the dovetail is uniform shape, create a plane at the angle of the taper and do a simple extrude-remove.
