Creo 4.0 assembly mode missing axis and plane

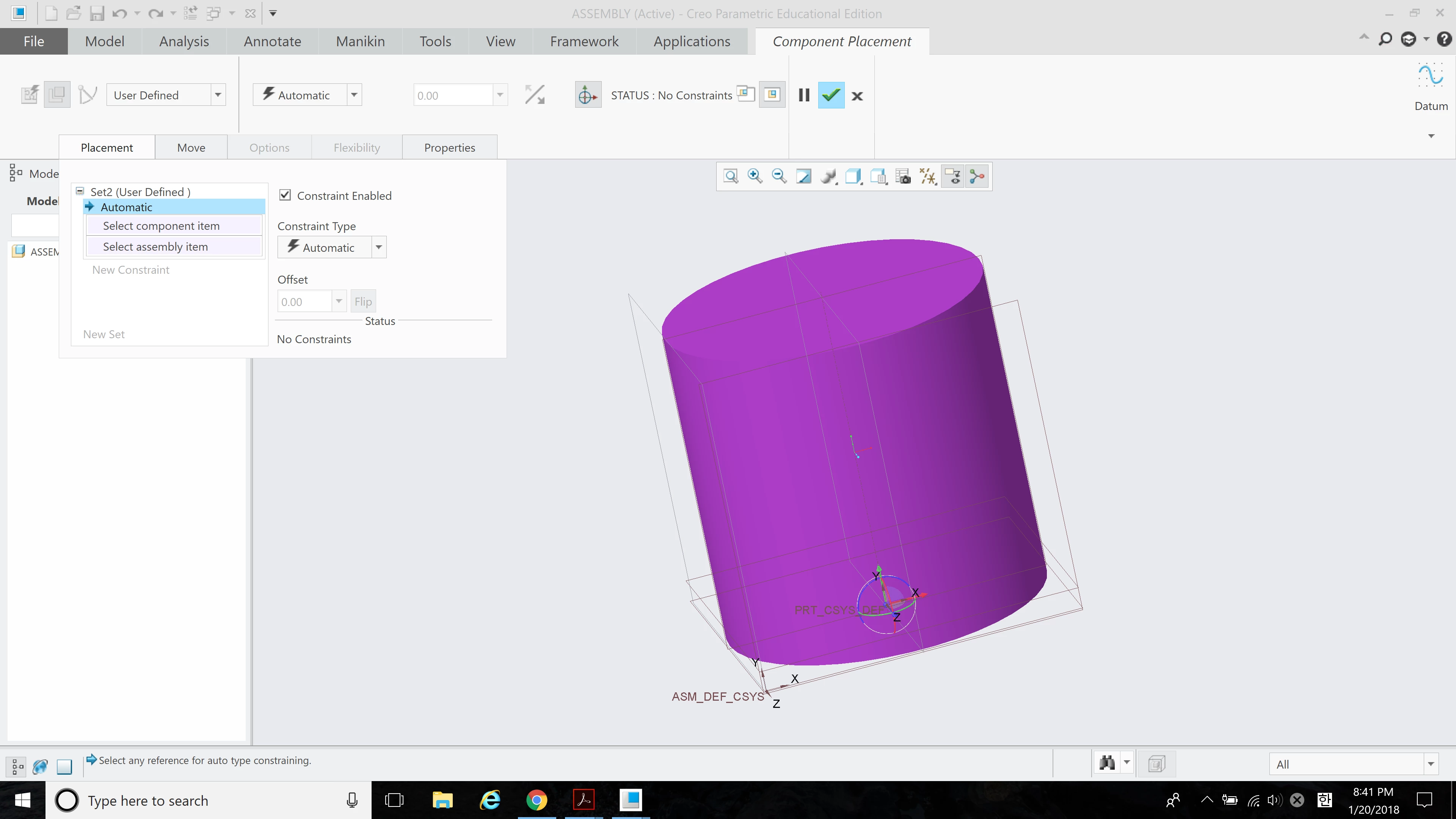

When I start a new assembly file, I can see CSYS and 3 planes on the modeling window, but they are not shown in the model tree on the left. This does not happen when I start a new part file. Additionally, when I call in parts into this new assembly file, I cannot see the model tree of those parts (in other words, I cannot see the all the steps necessary creating that model) which makes it impossible for me to pick center axis or planes for correct constraints.



Please help

Mahesh_Sharma
Mahesh_SharmaAnswer
22-Sapphire I
January 22, 2018

I think display of Features is no On to display in Model tree.

Select Setting on top of Model tree > Tree Filters > Check Features > Ok



View in thread

1 reply

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
January 22, 2018

I think display of Features is no On to display in Model tree.

Select Setting on top of Model tree > Tree Filters > Check Features > Ok
