Creo 4.0 Reference Viewer - Paths tab is there.

  • April 5, 2019
  • 2 replies
  • 3467 views

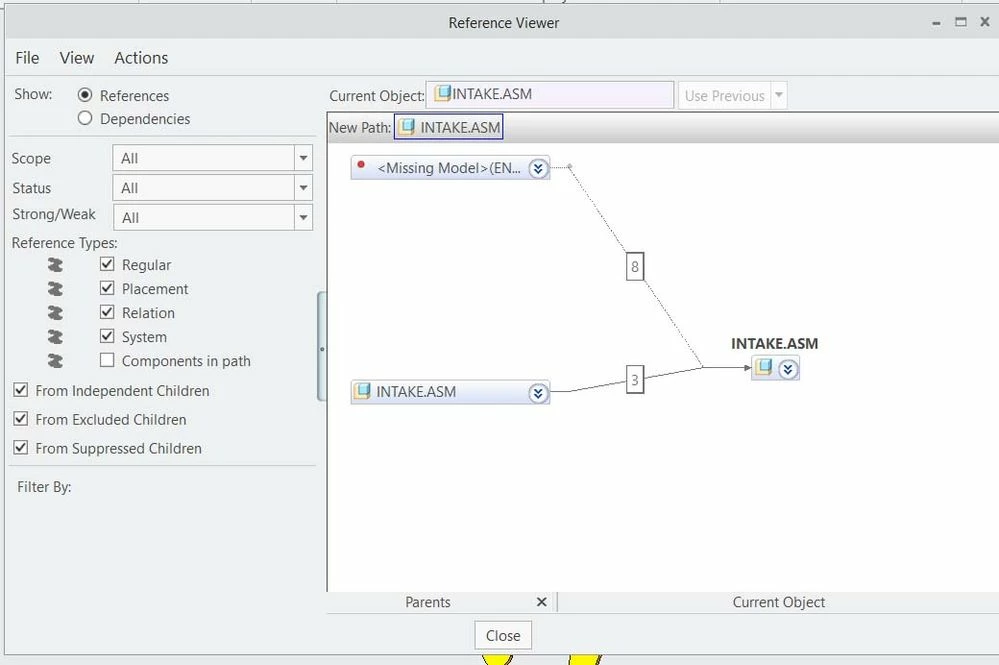

I haven't used the Reference Viewer for some time but I am trying to track down a circular reference. I have watched several videos that go through the process and all have a "Paths" tab in the Reference Viewer which I do not have. Did something change in Creo 4.0 or earlier that got rid of the Paths tab?


2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
April 5, 2019

I usually use the .crc text file that creo generates in the working directory. So in the one below, the problem is in the middle segment "extrude_1, id=470)". It's always the middle one but you can sometimes solve the problem by correcting assembly constraints.



1 CIRCULAR REFERENCE LOOPS FOUND

LOOP # 1

Depth of loop is 3

Feature number 21 (COMPONENT, id = 350)
in model 20083265 refers to:



Feature number 5 (EXTRUDE_1, id = 470)
in model 20083265-WELD1 refers to:



Feature number 21 (COMPONENT, id = 350)
in model 20083265 - circle closed.

M
MaikTheBike15-Moonstone
15-Moonstone
May 4, 2020

Hi,



I have to revive this thread, beacause I have exactly the same problem.

In almost every video I see there is a "Path"-Tab inside the reference-viewer, but it doesn't exist in my Creo.



Is there a config-pro-option to activate it ? Or how can it be displayed ?





In the creo-Help it says:



The Reference Viewer dialog box opens.
2. Click the Paths tab and then click Find Circular Paths. The model is regenerated and the existing circular paths are listed.



Thanks,

Maik

T
Trebla16-Pearl
16-Pearl
May 4, 2020

Hi Maik,

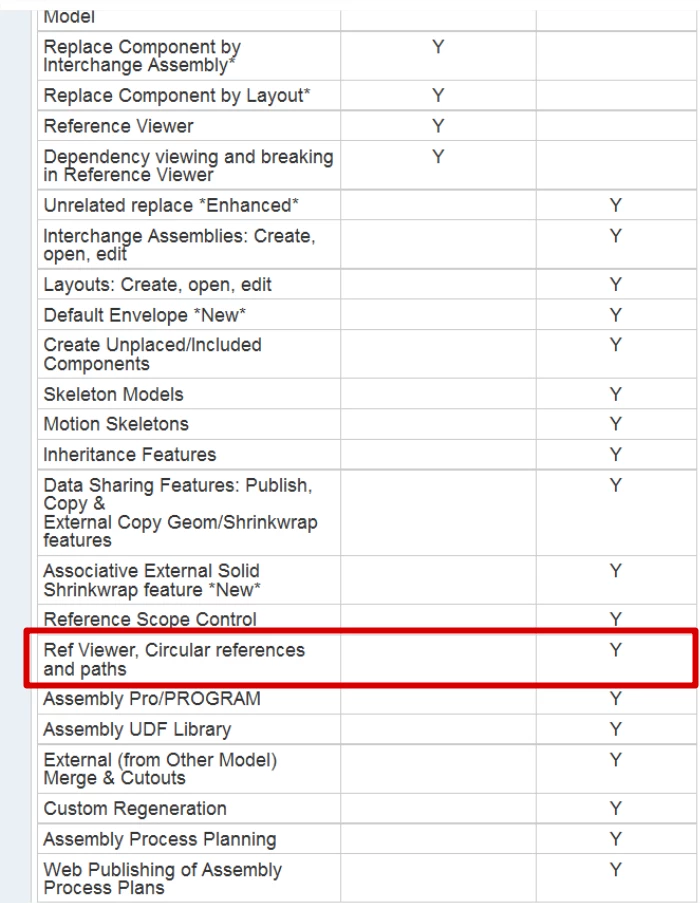

The Paths Tab is only available with AAX (Advanced Assembly Extension):






M
MaikTheBike15-Moonstone
15-Moonstone
May 7, 2020

Hi Trebla,



thanks for helping me...

Can you tell me, where I can find the licence-list you posted ?



Thanks,

Maik
