Question

Creo 4 M010 issues with Assembly and IGES output

  • April 27, 2017
  • 6 replies
  • 3189 views

This morning I was informed that the 1st model I released in Creo 4 (as an assembly) wasn't readable by Powermill.  We have been releasing direct Assembly models because Powermill now has the capability to directly import Assemblies from Creo.  Unfortunately it appears this doesn't work in Creo 4.

Next I tried exporting an IGES.  There were no options that opened up at export.  When I clicked on Customize there wasn't any box to export curves.  When I round tripped the IGES sure enough the curves did not come back in.

We always send out our models assembled together.

At this point it appears this isn't possible.

Would there be any way to cure these issues?  I looked at the config options and at this point I don't see anything that would help.

    6 replies

    J
    JonathanHodgson13-Aquamarine
    13-Aquamarine
    April 27, 2017

    I'm guessing that the Creo 4 file format is too new for your version of Powermill - it may take a while before they implement it.

    Remember that each new version of Creo brings a new format, which can't be read by older software.

    Have you tried STEP?  It's often more reliable than IGES.

    P
    pimm15-MoonstoneAuthor
    15-Moonstone
    April 27, 2017

    I just tried STEP.

    I don't even see how to export curves with it.

    Round trip doesn't show curves.

    T
    TomU23-Emerald IV
    23-Emerald IV
    April 27, 2017

    Paul Imm‌,

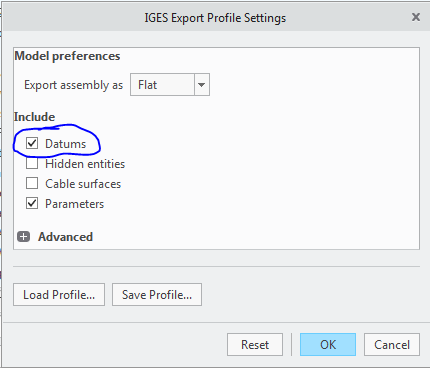

    To enable curves for IGES output, click on the options button on the save dialog and then check 'datums'.

    P
    pimm15-MoonstoneAuthor
    15-Moonstone
    April 27, 2017

    Awesome,

    Thank you, this solves one of the 2 issues so at least we have a fall back now.

    I guess I didn't even consider curves as datums, but in thinking it through they do actually specify datum curves in Creo.
