Creo 7.0 - Local section spline not appearing on original view

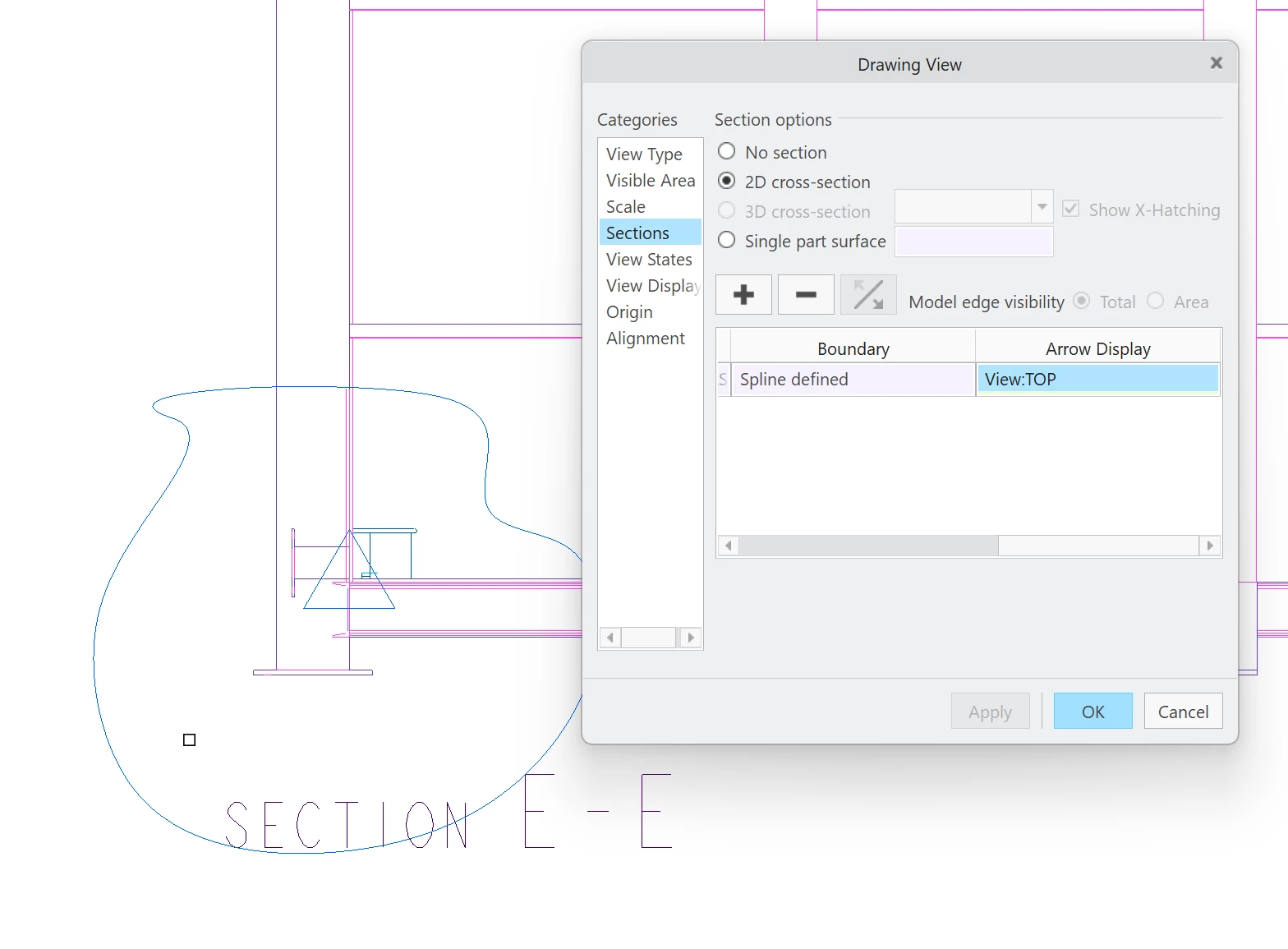

I created a local section view on a model back view and I can't get the spline that demarcates the edges of the section view to show up. The spline only appears when I have the dialogue box open for editing the view. As soon as I close out the box, the spline disappears but the section remains. I would like the spline to remain on the view. How can I do this?

KC_12201664Answer
7-Bedrock
Jan 16, 2025 11:59 PM UTC

I can't recreate the part at this time so I ended up adding a spline sketch that follows the spline used to create the local section. This accomplishes the problem I was looking to solve.

View in thread

2 replies

MartinHanak24-Ruby III
24-Ruby III
Jan 15, 2025 8:12 AM UTC

Hi,

your model contains surfaces. I am not able to remember how Creo works in such situation.



Suggestion:

  • Create part containing solid extrude feature and cross section.
  • Then create drawing containing view with local section.

What do you see?



Translate
KC_122016647-BedrockAuthorAnswer
7-Bedrock
Jan 16, 2025 11:59 PM UTC

I can't recreate the part at this time so I ended up adding a spline sketch that follows the spline used to create the local section. This accomplishes the problem I was looking to solve.
