Creo 9 2D Measurement / Geometric tolerance

  • January 14, 2025
  • 1 reply
  • 839 views

Dimensioning Creo 9 2D. Attach geometric tolerance to dimension. How does that work in Creo 9. Previously had Creo 7



Translated by the moderation using Google Translate
-----------------------------------------------------------------------------------------------



Bemaßung Creo 9 2D. Geometrische Toleranz an Maß hängen . Wie geht das in Creo 9. Hatten vorher Creo 7

1 reply

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
January 14, 2025

Don't have Creo 9, however in Creo Plus (Creo 12) it is a simple as select Geometric Tolerance button and select an entity to attach it to.  You can also change the attachment using Change Placement.




There is always more to learn.
S
SK_102758921-VisitorAuthor
1-Visitor
January 15, 2025

Hi, yes I know this way but we need the geometric tolerance on the dimension. I can not move the geom.tol. if I placed it on a housing edge.

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
January 15, 2025

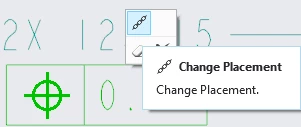

I can place a GTOL on a dimension by selecting the dimension in Creo 7 and CreoPlus (12).  I can also move afterward by using Change Reference/Change Placement (name changed somewhere between 7 & 12) and selecting a new entity.
