Question
Creo Drawing....Cleanup Dimension Issues for diametrical dimensions
Hi guys
I have part with a single revolve feature....where the revolve diameter is so large compared to the sectional dimension
For example lets say revolve diameter as 900 mm and section is of 40mm X 20 mm.....and revolve angle is 25 degree symmetrical.
So when i'm creating a drawing for the part i created the sectional dimensions with respect to the revolve axis itself saying 940 and 860 mm

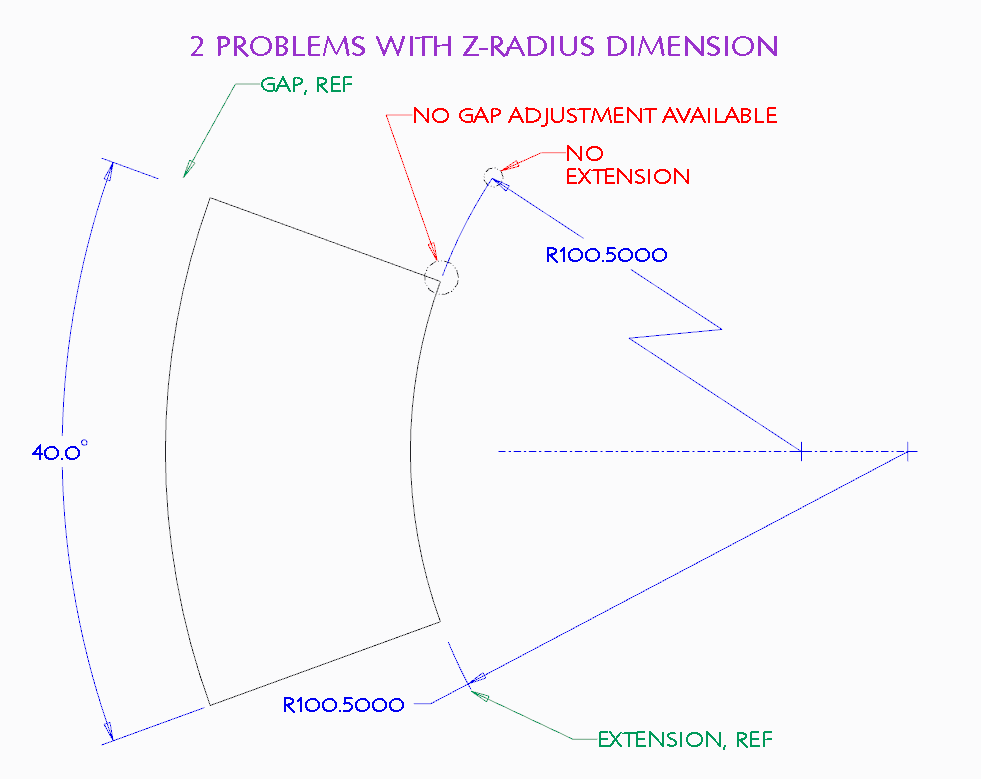

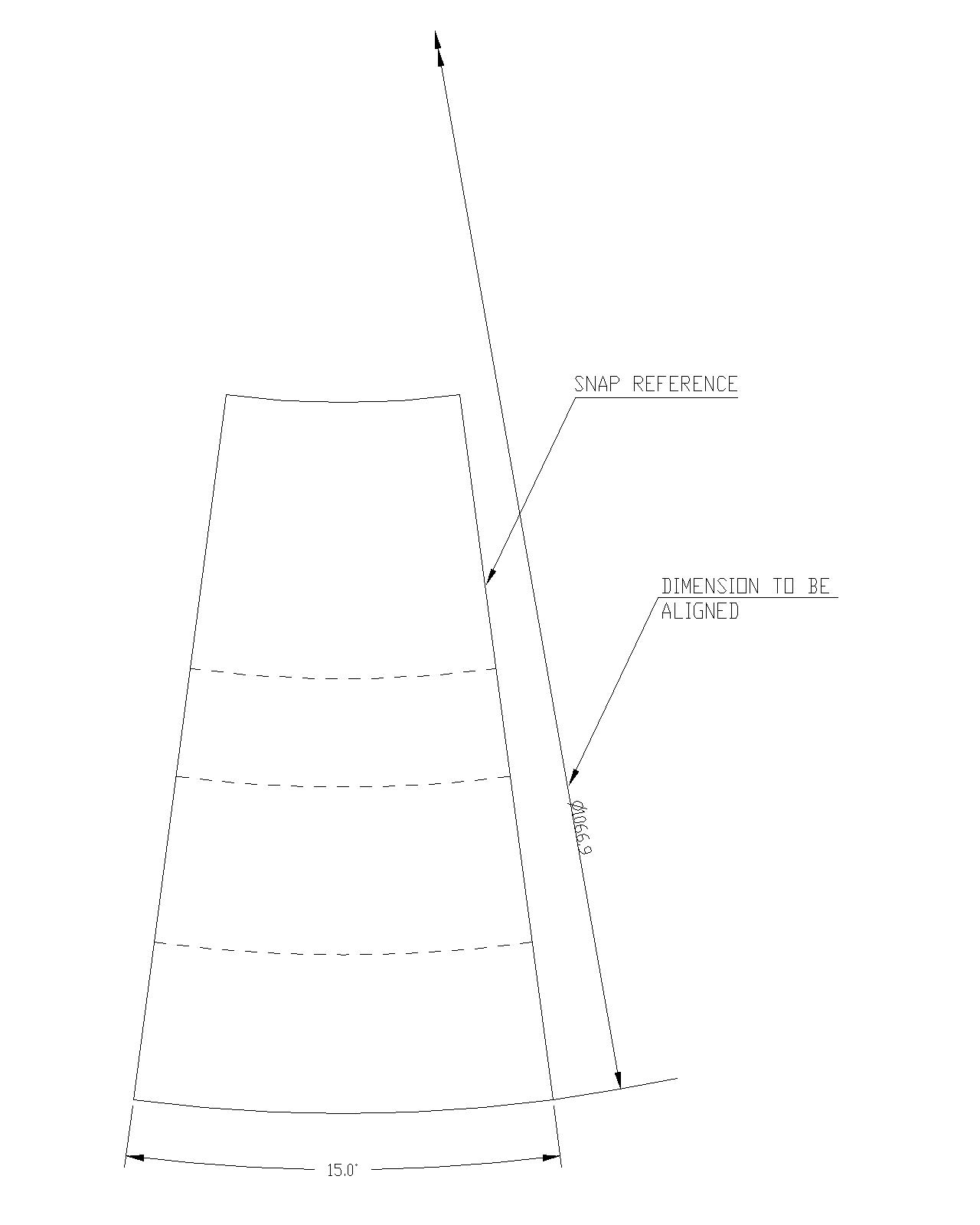

but my issue is that i want these dimension to snap for a certain angle with reference to the edge of the model.
And i want then to automatically align with that angle if i change the revolve angle.....
Please somebody help....I'm really in trouble regarding this......
