Creo parametric assembly dashed line

Hi,

Is possible to disable or remove the dashed line that appears during assembly parts in creo parametric under edit definition ?

I want to keep the surface selection view but without the dashed line that help to position a single part for example.

I'm using Creo Parametric 8.0

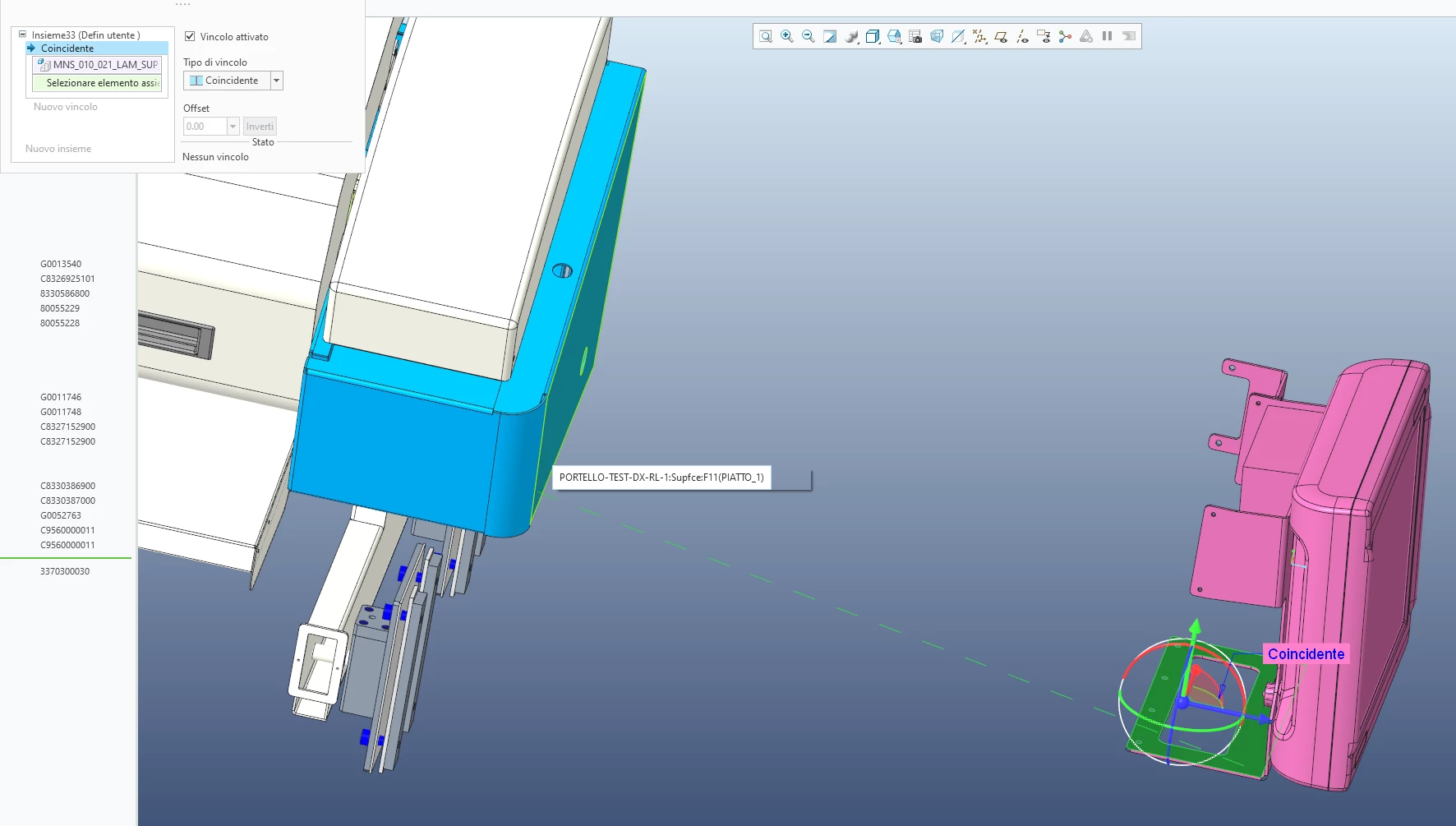

(see the attached below)



thank's in advance
Fabio









StephenW
StephenWAnswer
23-Emerald III
Oct 13, 2023 11:32 AM UTC

comp_assemble_start constrain_in_window



This option will start your assembly in the "secondary window". I think it is what you are looking for.

View in thread

9 replies

Abhiram_Pande14-Alexandrite
14-Alexandrite
Oct 12, 2023 9:50 AM UTC

Hello

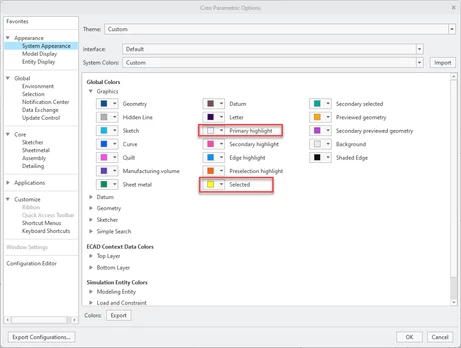

The color of the dashed line is driven by Primary highlighted & Selected

When the references are being selected, the dashed line is driven by Selected.

After selecting both references, the dashed line is driven by is Primary Highlighted

abpande_0-1697102765723.png`



config option below were also not helpful

  •  highlight_geometry
  • prehighlight





Translate
Fabio_Ugoletti10-MarbleAuthor
10-Marble
Oct 12, 2023 10:17 AM UTC

Hi,

I have already try to change the options "prehighlight"  to NO, and see the dashedline during assembly edit definition disappear but I can't see no more the select surface that I wanto to move with a coincidente until I click on that surface, for example, with another surface.



I want only to disable o disappear only the dashed line wich appear during the assembly , or set to "Trasparent"  instead of colourful, if is possible.



Bye

Fabio



Translate
MartinHanak24-Ruby III
24-Ruby III
Oct 12, 2023 12:04 PM UTC

Hi,

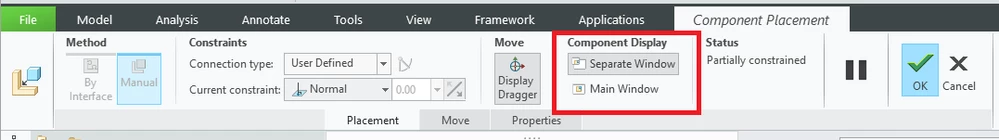

how about showing the component being added in a separate window.




Translate
Fabio_Ugoletti10-MarbleAuthor
10-Marble
Oct 12, 2023 12:44 PM UTC

Thank's for your suggestion MartinHanak.

I tried and the dashed line is disappeared but the highlight surface is remain.
However is a little bit difficult to see what you are doing because you don't have the part in the main window and you don't see how the part is oriented.
Anyway I will try to use this metod and I hope that will be a possibility, mybe in the future to hide this dashedline.
