Creo Piping Flare

  • April 12, 2024
  • 1 reply
  • 960 views

is there any way to create Flare at the tube ends in Creo piping module? please suggest.

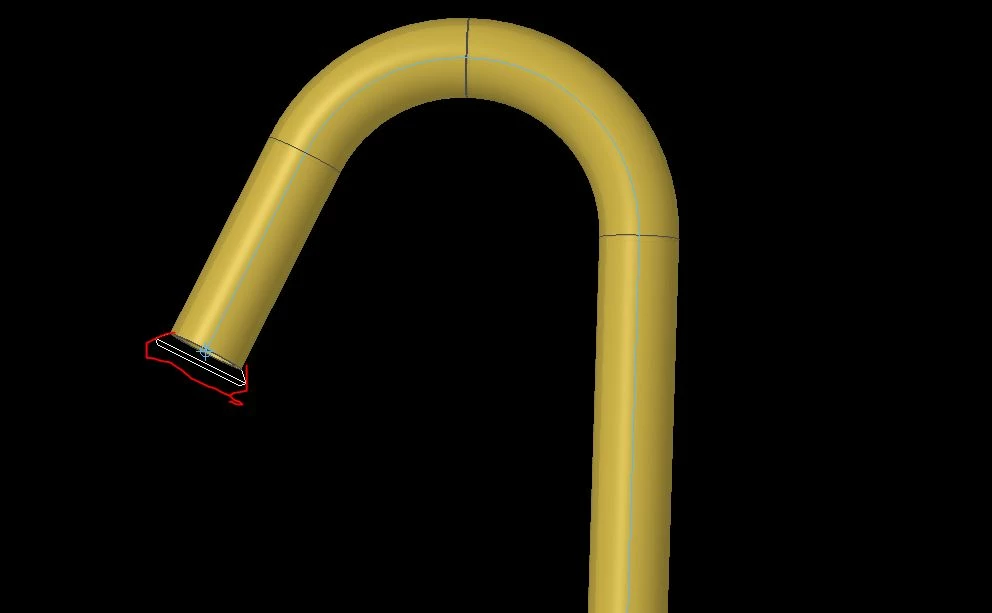

I'm creating the new copper tube which requires Flare at the end. I was trying to add revolve feature but couldn't do it since it is in assembly mode - Refer the attached image.

1 reply

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald III
23-Emerald III
April 12, 2024

I am not sure about piping, but you cannot "add" material in an assembly.

For part that gets crimped, I made two instances: as purchased and as crimped.

I used the as crimped in my assembly and as purchased on the drawing for the vendor.

In this particular case, I show both instances on the part drawing.
