Creo Schematics wire jumps/bumps for non connected intersection

  • June 5, 2023
  • 2 replies
  • 2506 views

New Creo Schematics user. I'm trying to add a jump or bump to show cables that are not connected.

Anyone know a procedure on how to go about doing it?



Thank you





Best answer by justin.baker

From the "Diagramming" menu about 2/3 of the way over from the left there is a section called "Crossovers"... from here click "Add"


The size of the crossover is determined by the grid size so if you want them a different size you'll need to adjust that as well. You'll have to click remove then add again after updating grid size. To do this go to "Tools" -> "Grid" -> "Grid Properties"






2 replies

L
Lars_F14-Alexandrite
14-Alexandrite
June 7, 2023

Hi,



Interesting topic in general.

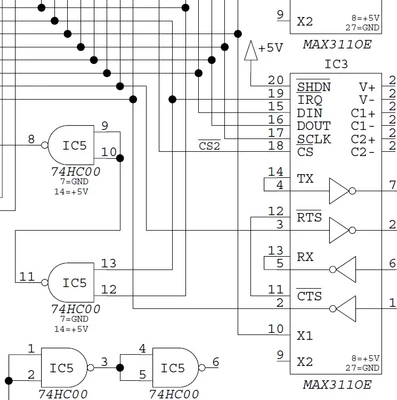

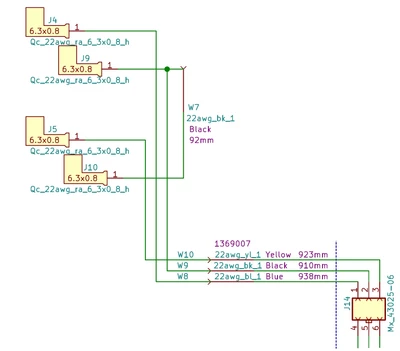

We don't use creo schematic but there are lots of general discussions over this topic e.g in Kicad forum (what we use)
https://forum.kicad.info/t/junction-dots-and-hop-overs-comparison-of-programs/26191



Another discussion claims that the hop-overs are "Old"-convention.
https://www.circuitbread.com/textbooks/lessons-in-electric-circuits-volume-v-reference/circuit-schematic-symbols/wires-and-connections



Yet another talk in eevblog...
https://www.eevblog.com/forum/altium/_dodges_-or-_hops_-on-overlapping-wires-in-a-schematic/



I don't believe that Creo schematic have hop-overs (that is my guess, since most other programs don't have them either).



Personally I would not use hop-overs even if the program had that option. Mainly because I have never used them.

  • Starting from PCAD (until -92)... no hop-overs



  • Viewlogic viewDraw.... no hop-overs



  • Custom Cad... no hop-overs



  • Today we are using Kicad... no hop-overs.






The dot is a must in connected wires, though.



Br,

Lars

J
justin.baker10-MarbleAnswer
10-Marble
June 9, 2023

From the "Diagramming" menu about 2/3 of the way over from the left there is a section called "Crossovers"... from here click "Add"


The size of the crossover is determined by the grid size so if you want them a different size you'll need to adjust that as well. You'll have to click remove then add again after updating grid size. To do this go to "Tools" -> "Grid" -> "Grid Properties"






    A
    ASA8-GravelAuthor
    8-Gravel
    June 9, 2023

    Justin Baker, thank you so much for  your time. Greatly appreciated!
