Creo symbol name for welding

Forum|Forum|8 months ago
September 11, 2025
1 reply
416 views

I would like to create a weld symbol in creo drawing. If there is any standard symbol available in library please suggest that name.

Weld Design

S

StephenW

23-Emerald III

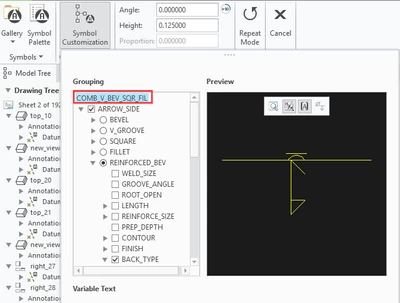

for the second one use comb_v_bev_sqr_fil.

For the first one, I don't think they made a fillet version with a backing symbol, so you may need to create your own. I would start with the fillet and either create a new symbol or just sketch in the backing or make a new symbol.

V

VK_7

Author

4-Participant

Thanks for the suggestion but it is not showing backing , actually it shows the melt-thru. That's my main concern how to create that symbol if we don't have it in our library.
