Question

Creting a shrinkwrap of a framework created assembly

  • April 1, 2020
  • 2 replies
  • 2157 views

We are using Framework extension to create a building frame using steel structures and then adding some piping  work files to the frame. We now need to create a shrink-wrap of the assembly to use as a background for some additional component placement.

The designers are having u=issues with generating a good shrink-wrap that can be imported into another assembly and use it to dimension these additional components to. Is there a trick to using shrink-wraps with framework created parts?



Creo 4 m080 with Windchill 11.0 mo030 CPS 16

2 replies

M
MartinHanak24-Ruby III
24-Ruby III
April 2, 2020
@BenLoosli wrote:

We are using Framework extension to create a building frame using steel structures and then adding some piping  work files to the frame. We now need to create a shrink-wrap of the assembly to use as a background for some additional component placement.

The designers are having u=issues with generating a good shrink-wrap that can be imported into another assembly and use it to dimension these additional components to. Is there a trick to using shrink-wraps with framework created parts?



Creo 4 m080 with Windchill 11.0 mo030 CPS 16

Hi,

why designers do not use STEP export/import ?

A
ArnaudVandeVeer16-Pearl
16-Pearl
April 7, 2020

How are you creating the SW ?

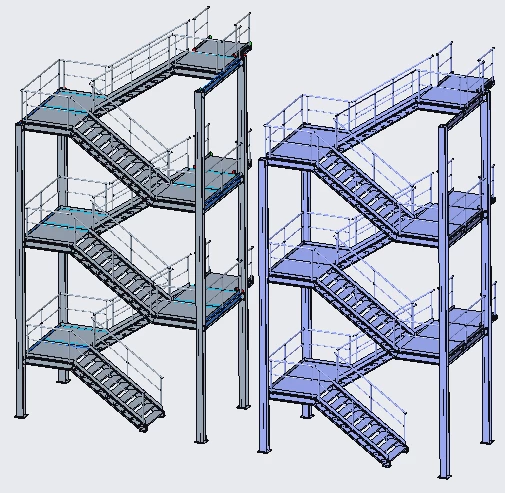

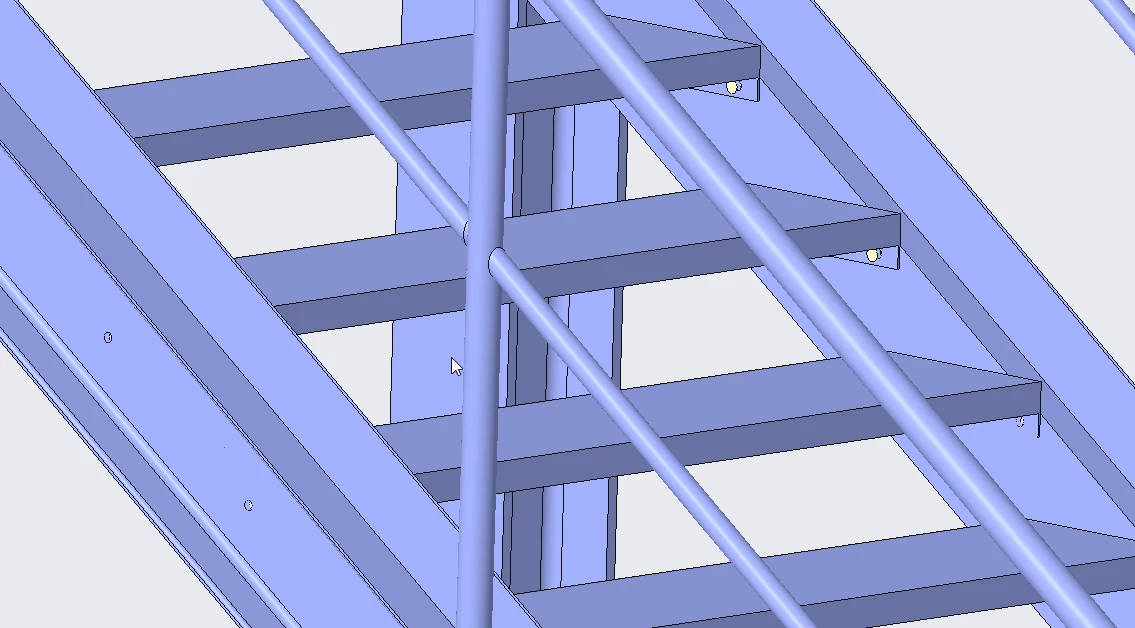

I just tried it with below staircase with good result.
