Cross-Section Arrows Questions, CREO 10.0.0

I notice that in CREO Parametric 10.0.0, to add Arrows for a Cross-sections you have to first open up the edit hatching tab (by clikcing on the hatch lines), then switch the to the Layout tab to find the Arrows tool. It looks like you can no longer start with the Arrows tool and then click on the desired hatching either.



Is there an easier way to show the placement Arrows of a Cross-section than having to switch tabs?

MartinHanakAnswer
24-Ruby III
Jun 14, 2023 2:39 PM UTC

Hi,

you selected hatching. You have to select view.

View in thread

10 replies

kdirth
kdirth21-Topaz I
21-Topaz I
Jun 14, 2023 12:05 PM UTC

Hopefully they have not made it harder.  I am still on 7.0.

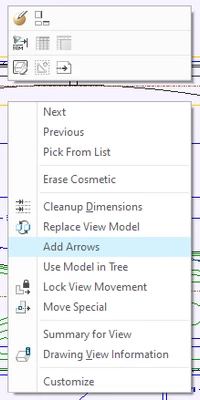

I have always selected the sectioned view and selected Add Arrows from the RMB menu then select the view for the arrows.




Translate
There is always more to learn.
    mcbooya8-GravelAuthor
    8-Gravel
    Jun 14, 2023 2:33 PM UTC

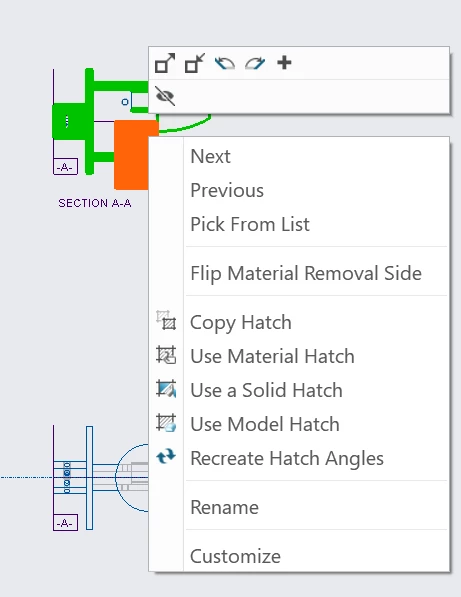

    Looks to me that the RMB menu doesn't have the Add Arrows option anymore in CREO 10. Those icons are to half/double the spacing or change the angle.


    Translate
    MartinHanak24-Ruby IIIAnswer
    24-Ruby III
    Jun 14, 2023 2:39 PM UTC

    Hi,

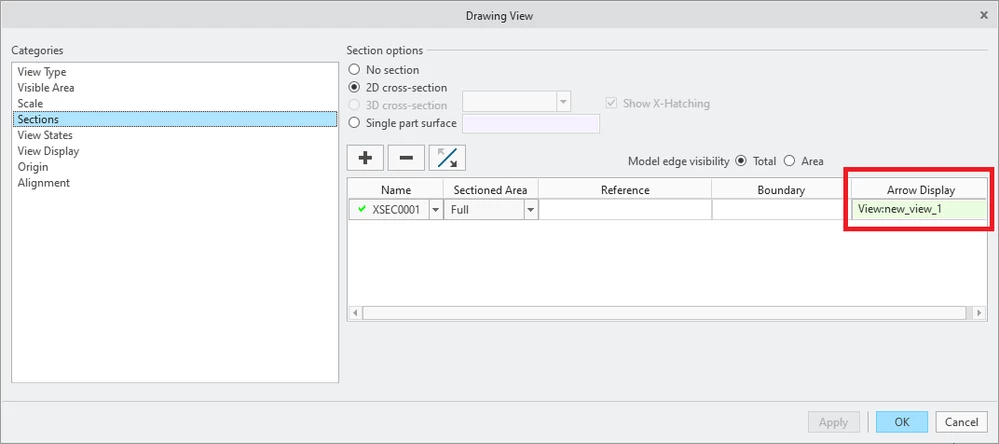

    you selected hatching. You have to select view.

    Translate
    MartinHanak24-Ruby III
    24-Ruby III
    Jun 14, 2023 12:33 PM UTC




    Translate
      mcbooya8-GravelAuthor
      8-Gravel
      Jun 14, 2023 2:36 PM UTC

      That does work, thanks. I didn't see it as my Drawing View menu is cutoff after the Reference Option. I had to use the scroll bar to scroll over to see that extra option even though I have a wide monitor.



      Is there a good way to make a Request to PTC that they should include the Arrows tool in the Edit hatching Tab or in the Pop-up menu when you click on the Hatch?

      Translate
      tbraxton
      tbraxton22-Sapphire II
      22-Sapphire II
      Jun 14, 2023 2:39 PM UTC

      I am not using Creo 10 yet so I am not able to test this, but you should be able to customize the pop up menu by adding the command you want. You may be able to add the command directly to the menu or if not then create a mapkey to add it.
