Cross-section view is not normal to its cutting planes

  • November 18, 2021
  • 2 replies
  • 3177 views

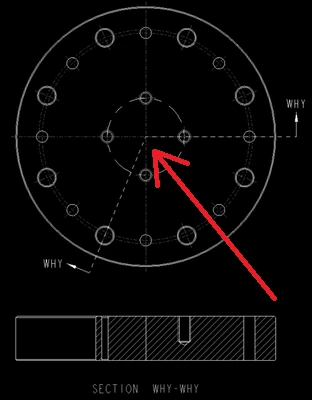

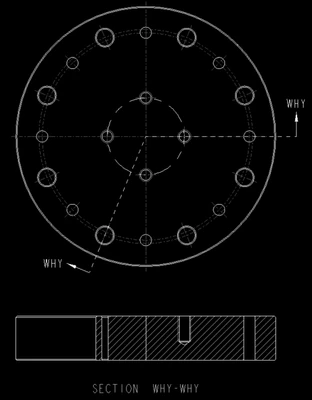

How to create this simple cross-section view correctly? (Note: the presented section view is wrong, it should be normal to its cutting planes). I know there is a procedure to make it somewhere buried in document. However, how to find this HELP is also not a simple task.



Is any kind of this problem need one day to solve?


In SolidWorks, pertinent Helps are available at one click, not like in CREO, in which I have to be well educated before I can type in the correct keywords to find a Help.

Best answer by StephenW

See https://community.ptc.com/t5/3D-Part-Assembly-Design/ProE-drawing-offset-section-view-issue/m-p/351205

I think you want full aligned as the cross section option.

2 replies

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
November 18, 2021

Are you asking how to rotate the view so that you're looking at it from this direction (in both views)?




J
JS_982441215-MoonstoneAuthor
15-Moonstone
November 18, 2021

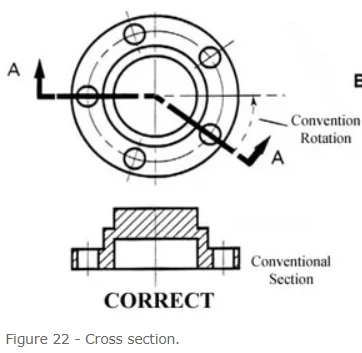

Cross-section view should be like the below. It is some sort of standard.




S
23-Emerald III
StephenW23-Emerald IIIAnswer
23-Emerald III
November 18, 2021

See https://community.ptc.com/t5/3D-Part-Assembly-Design/ProE-drawing-offset-section-view-issue/m-p/351205

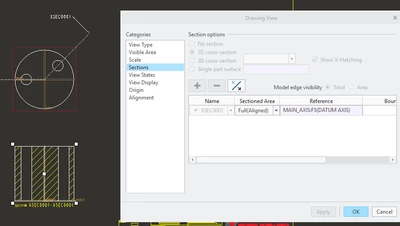

I think you want full aligned as the cross section option.

    J
    JS_982441215-MoonstoneAuthor
    15-Moonstone
    November 18, 2021

    Thanks for the link, in which I found the keywords such as "unfold" that is only available if it is in "general view", not in "projection view".



    So now, the problem is solved.



    Thanks.

    P.S. Why CREO is so difficult to use?



      S
      23-Emerald III
      StephenW23-Emerald III
      23-Emerald III
      November 18, 2021

      You can use Full Aligned as a projection and it is more likely exactly what you are looking for and is generally for round parts like you have.

      Full-unfold may work for this application specifically but may "skew" a view in some cases.



      Creo is just that way. It takes effort to learn. I've used it for 20+ years and I still learn new things regularly.

      Be positive. Have an open mind. Don't try to use it like solidworks or inventor or whatever you used before or you will go crazy and just get madder and madder. Ask questions, we are always willing to help.
