curve driven pattern - flip direction?

  • August 27, 2015
  • 2 replies
  • 8103 views

Hi all,

I have a curve driven pattern that is propagating in the wrong direction.  I rerouted my sketch to the other end of the curve and all is good - but in a more complex example, and for future reference, how can I simply flip the direction?  I checked and unchecked the option "follow curve direction" - that seemed not to affect the pattern.  I would have thought that I could click the yellow arrow, but that does not work.  Any hints?

Thanks!

-Nate

    2 replies

    C
    cmerani10-Marble
    10-Marble
    August 25, 2019

    Using Creo 3.0 this is a real problem and you are not the only one experiencing it.  I use point patterns every day but the curve never seems to work for me.  Hopefully someone will see this and help us out because there has to be something we are doing wrong.

    R
    rburgess-21-Visitor
    1-Visitor
    August 27, 2019

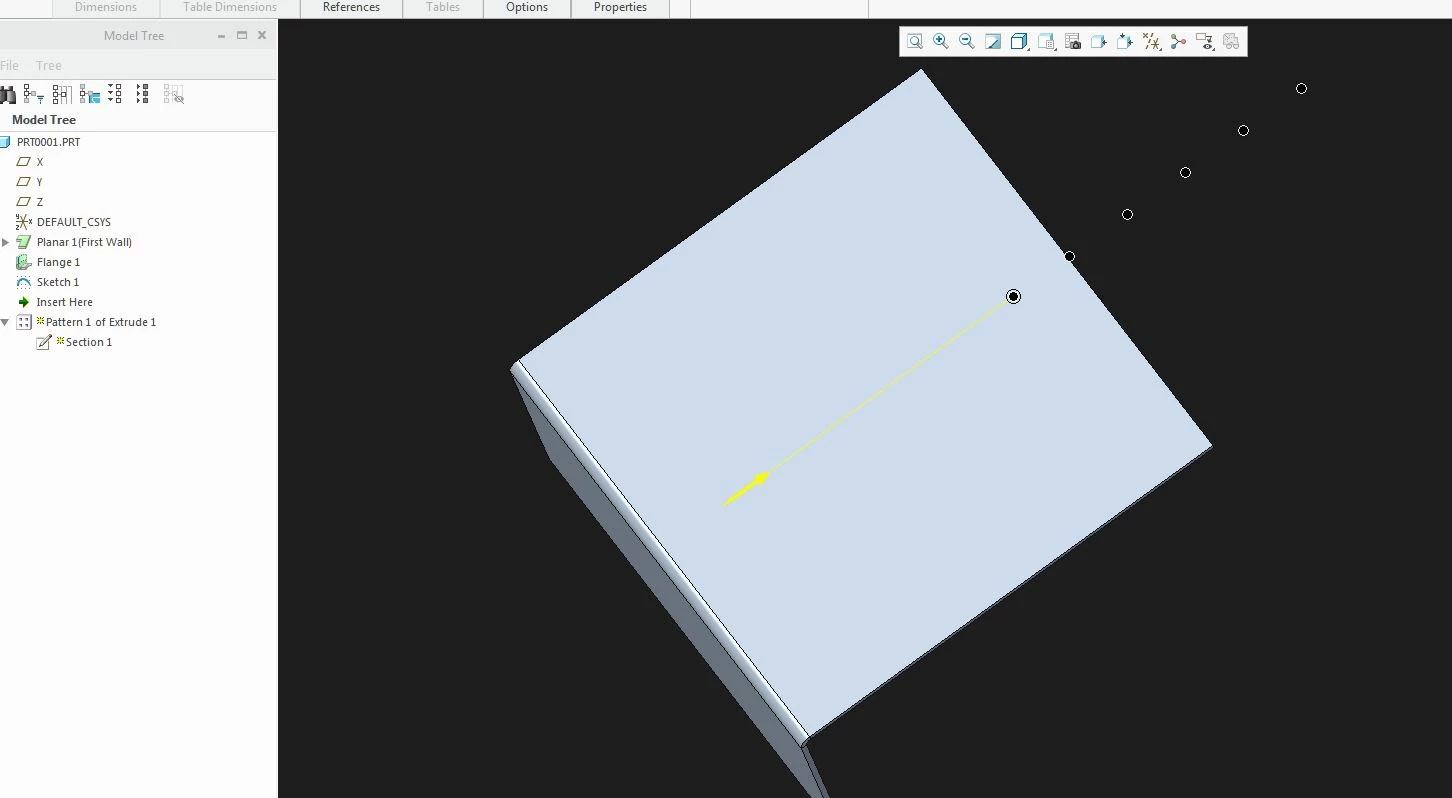

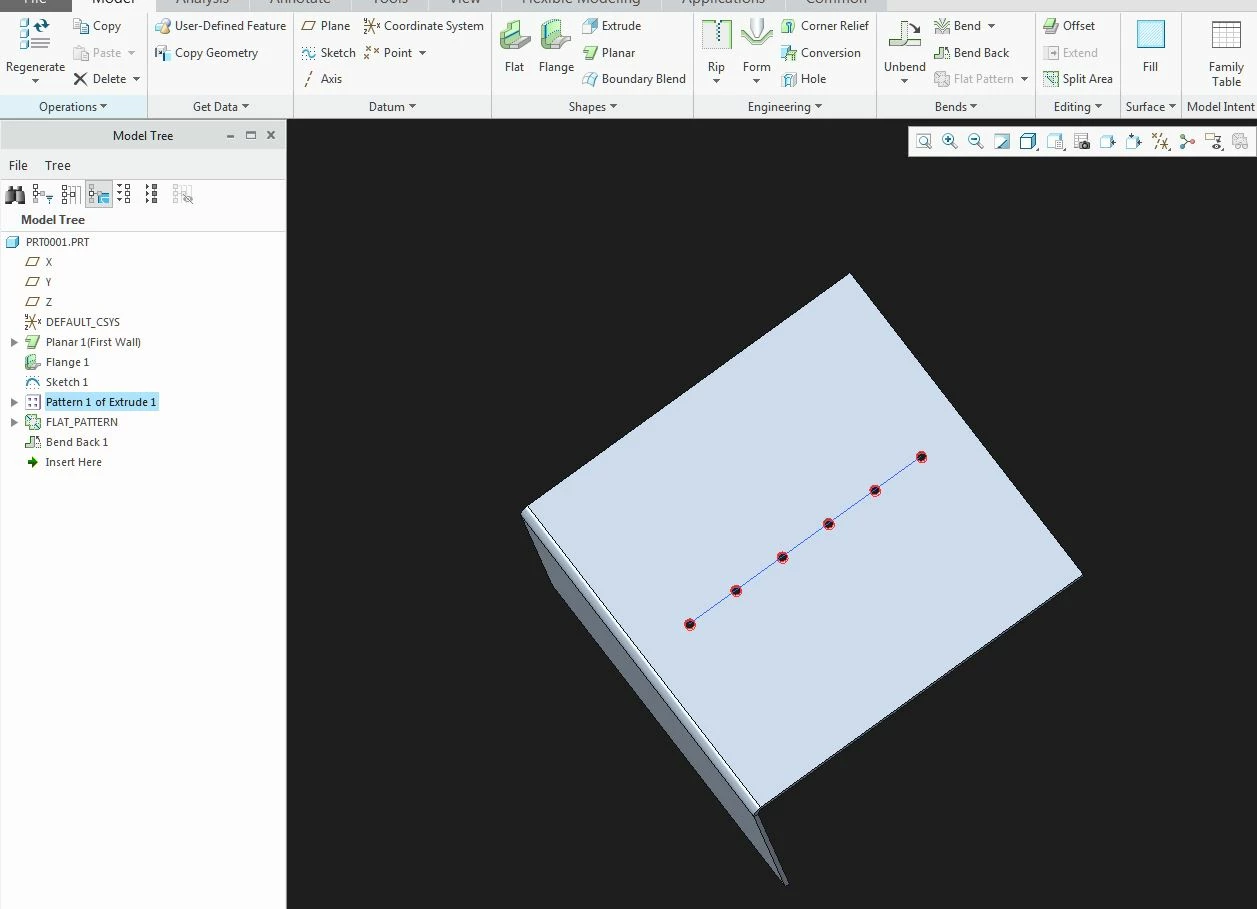

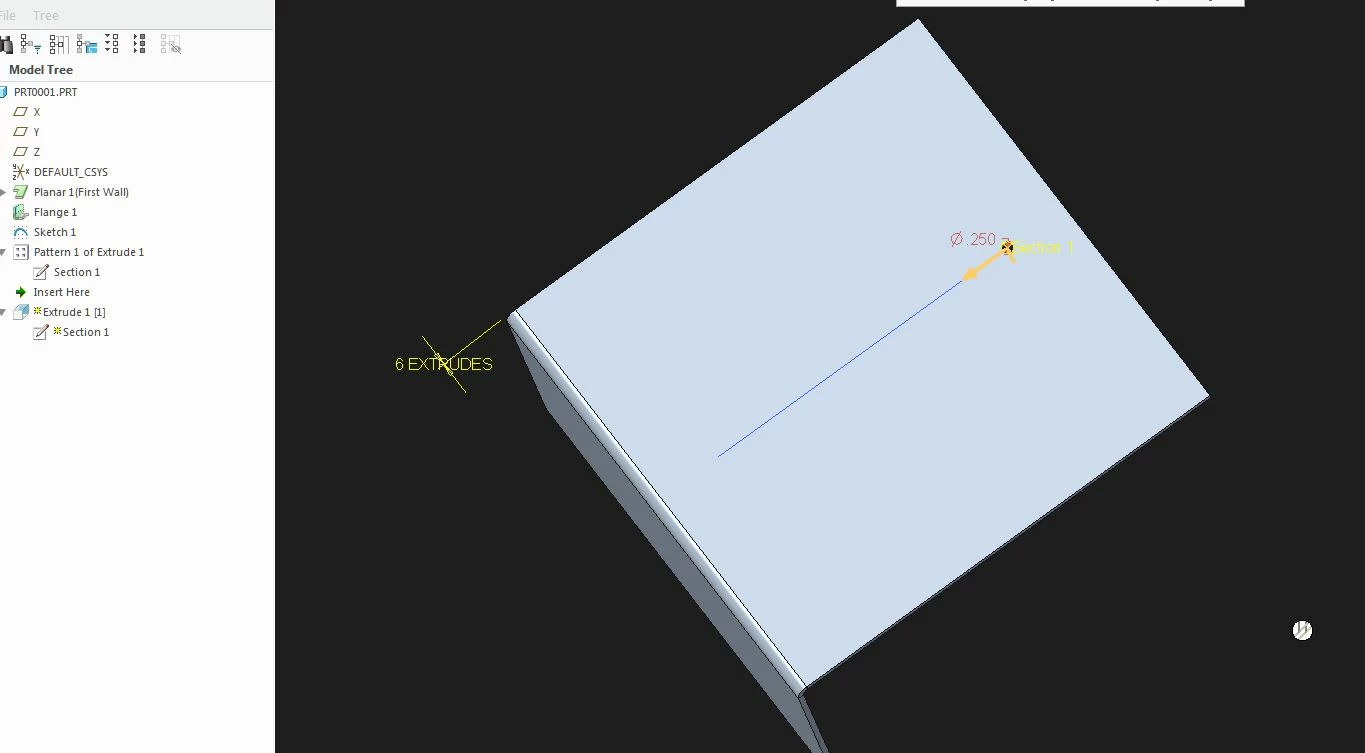

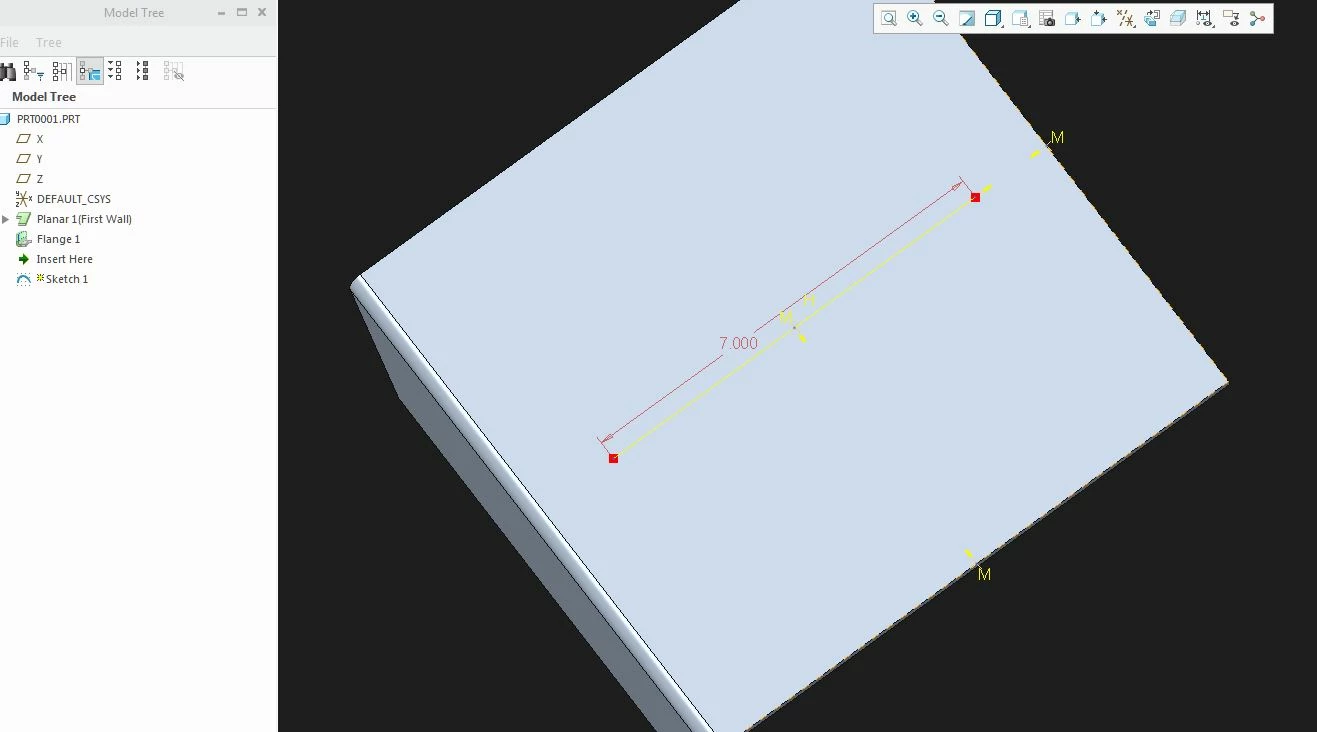

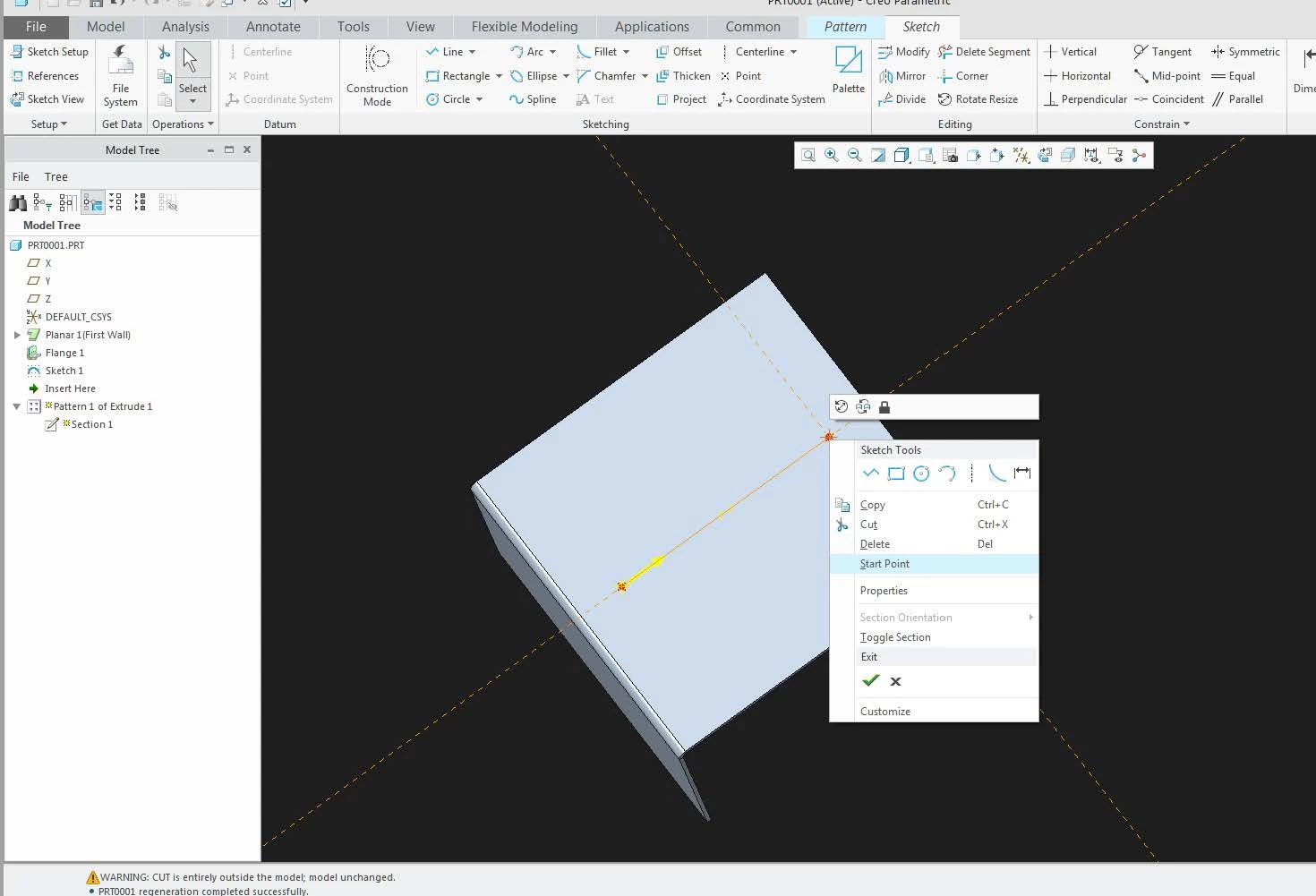

    Not sure if it matters but, I usually create a stand alone sketch in the part. I then reference it in the "curve pattern" via "project" in sketcher mode. However, I am using Creo 4.0 and all I do to change the start point is <r-clik> on the end of the sketch I want to use as the origin. (see attached screencaps)

    C
    cmerani10-Marble
    10-Marble
    August 27, 2019

    Thanks for the response.  This method is very close to how I have worked around the issue.  It would be nice if anyone could figure out how Creo determines the direction of the curve though.  I just cant seem to ever make out why it decides which direction the curve follows or why it would project it off of the curve in the first place.  It is very confusing and extremely frustrating at times.  Again, thanks for the input!

    S
    SR411-Garnet
    11-Garnet
    December 19, 2025

    Edit Definition of your sketch that has the curve, Sketch Setup, then Flip the Sketch view direction.  This should change the direction of your curve Pattern.  (I'm on 8.0)
